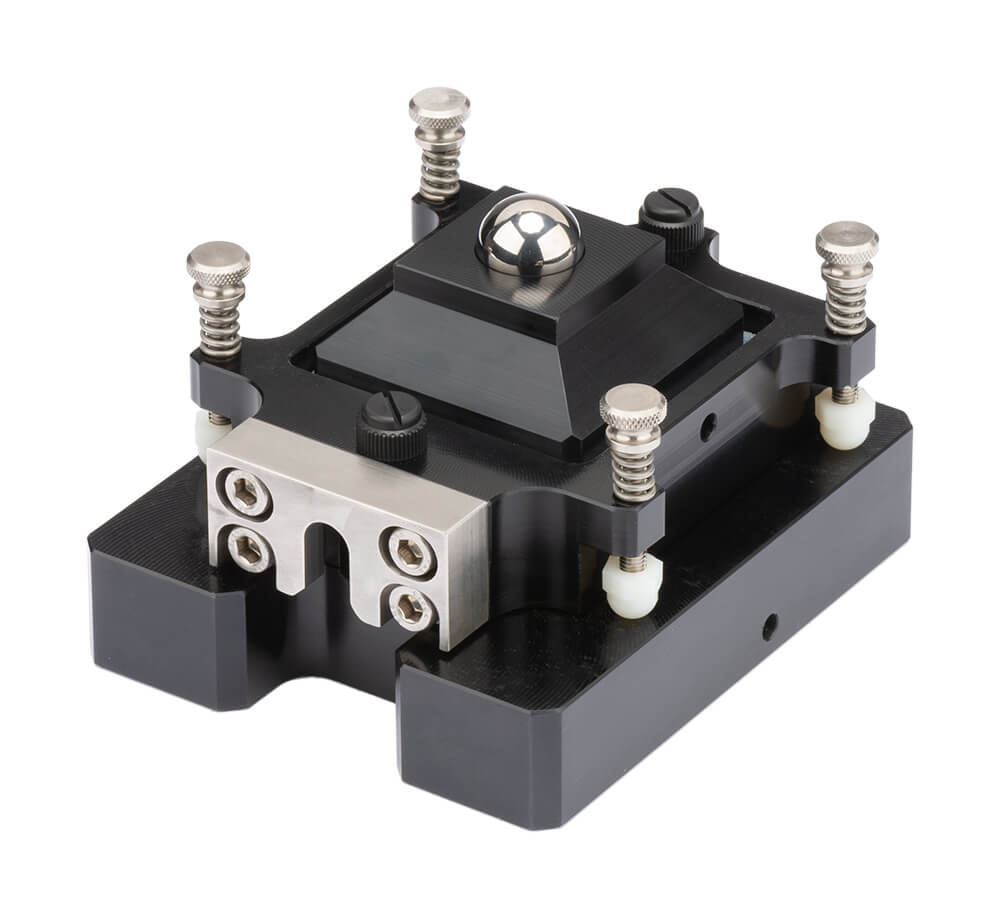

100mm Square Shear Box

100mm (3.94in) Shear Box has a square design and is used when testing soil specimens for direct and residual shear strength with Karol-Warner Dead-Weight Direct or Pneumatic Direct/Residual Shear Machines. The Shear Box is divided horizontally to allow opposing shear forces to be applied to the soil specimen. The Shear Box is made of anodized aluminum with a Teflon® finish that resists corrosion and comes with a top and bottom Porous Stone and Loading Ball.

Features:

• Rugged corrosion-resistant construction
• Corresponds to matching size Cutter and Extruder

Included Items:

• 100mm Diameter Shear Box
• (2) Porous Stones
• Loading Ball

Accessories:

• HMA-747S 100mm Diameter Cutter in the corresponding size and used to precisely trim soil specimen
• HMA-767S 100mm Diameter Extruder available in correlating size and shape for easy removal of the specimen from the shear box
• GSA-231S 3.937x3.9937in Porous Stone, 0.25in Thick allows for a free flow of fluids during testing
• HMA-81 Loading Ball used in consolidating sample
• HMA-739B Shear Box Counterbalance assures the weight will be less than 1% of the applied normal force by supporting the top half of the Shear Box.
