2in Cube Test Sets

Product is unavailable.

These items have been discontinued, visit ACA-320 for 250/300 series or ACA-321 for 400/500 series compression machines.

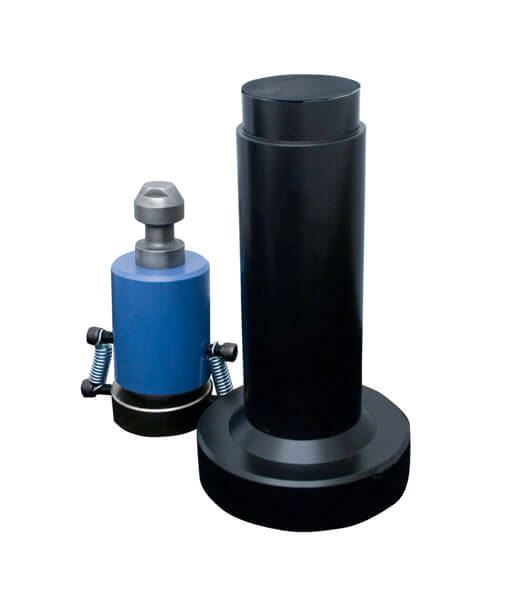

MCA-7 shown

Description
Specifications
Questions?

2in Cube Test Sets includes a lower cube pedestal and spherically-seated upper platen assembly to position the cube sample at the right height for testing. Upper platen assembly attaches to compression machine by a locking stem system. The cube test sets are used with the indicated Concrete Compression Machine for concrete strength testing. The testing size of the cube specimen is 2x2x2in (51x51x51mm) WxDxH. Meets ASTM C109, and AASHTO T 106M/T 106 standards.

Features:

Rugged steel construction
Upper platen assembly attaches securely to compression machine with locking stem system

Included Items:

2in Cube Test Set

Specimen Size	2 x 2 x 2in (51x51x51mm) WxDxH
Dimensions	Upper Platen: 3.13 x 5in (79 x 127mm), Dia.xH Cube Pedestal: 2.83 x 11in (72 x 279mm), Dia.xH
Estimated Shipping Weight	45.0lb (20.41kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Your name

Your email

Question

Specimen Size	2 x 2 x 2in (51x51x51mm) WxDxH
Dimensions	Upper Platen: 3.13 x 5in (79 x 127mm), Dia.xH Cube Pedestal: 2.83 x 11in (72 x 279mm), Dia.xH
Estimated Shipping Weight	45.0lb (20.41kg)

Meets Standard(s)
