Compressometer/Extensometers

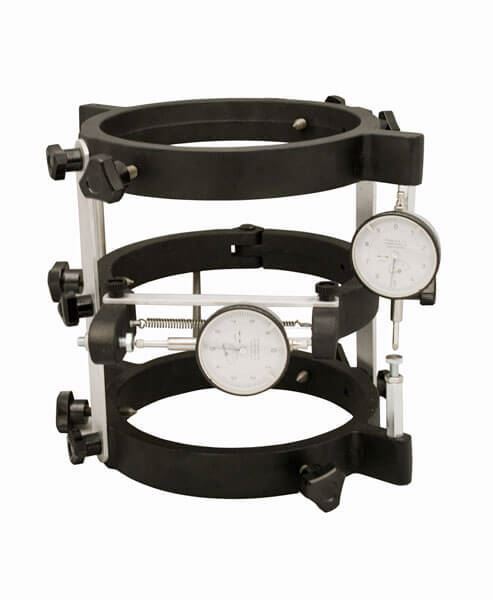

Compressometer/Extensometers are similar to the Compressometer in that they measure average deformation and strain of concrete cylinders during compression testing for determination of modulus of elasticity. In addition, a third center yoke attaches to the specimen to measure horizontal extension. This allows a combined determination of the modulus of elasticity and Poisson’s ratio. A second mechanical dial or digital indicator between yoke segments measures the transverse deformation simultaneously. Mechanical dial indicators measure specimen deformation. Models for 4in (102mm) or 6in (152mm) concrete cylinders are available. Yokes are made of lightweight aluminum, the other parts are cadmium-plated steel.

HM-131 Series is designed for use with 6x12in concrete cylinders.

HM-207 Series is designed for use with 4x8in concrete cylinders.

Features:

• Third yoke measures horizontal extension

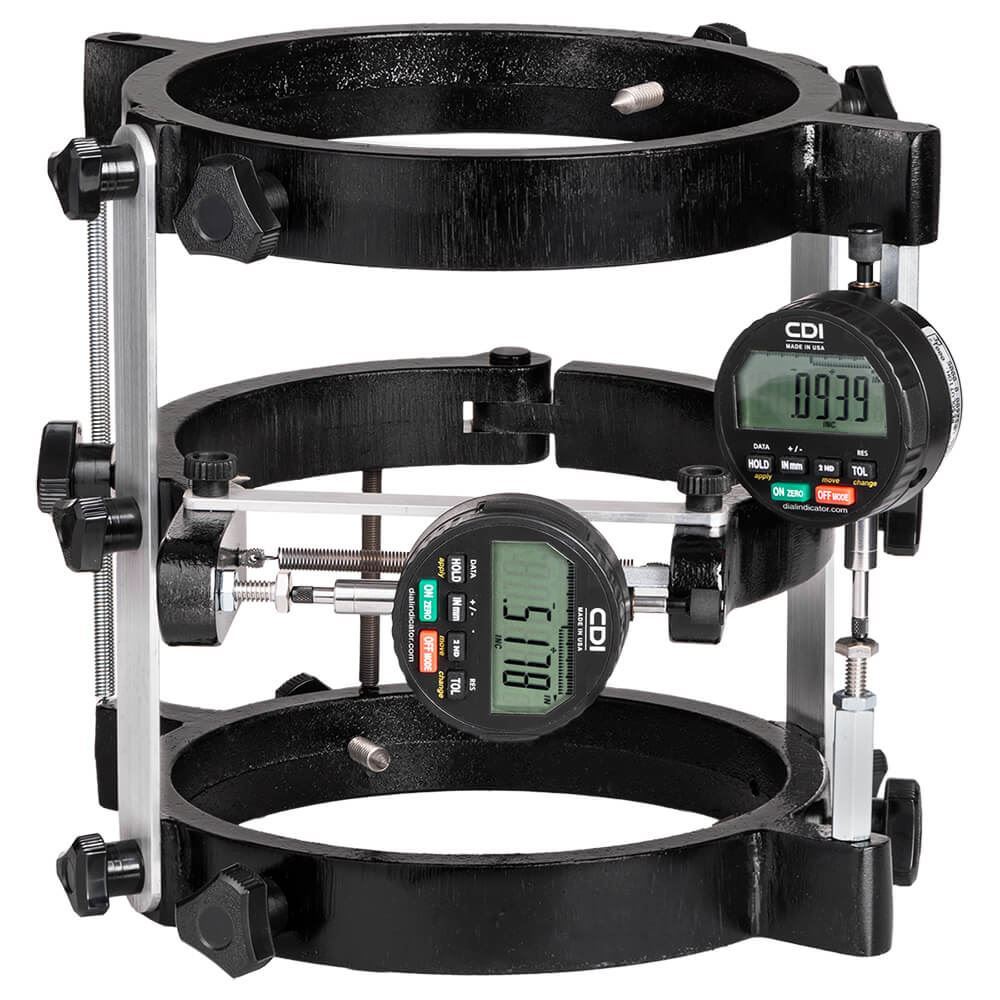

• Dual mechanical dial indicators or digital indicators
• Meets ASTM C469/469M requirements
• Models for 4in (102mm) or 6in (152mm) concrete cylinders

Included Items:

• 6x12in or 4x8in Compressometer/Extensometer (Mechanical or Digital Dial Indicator)

Accessories:

• MAA-83 USB Cable sends Digital Dial Indicator data to a PC for further analysis
• MAA-82 Digital Dial Indicator Data Collection System allows simultaneous measurement and logging of deformation data
• MAA-75 Digital Dial Indicator Digimatic 10-pin Cable connects the MAA-82 Data Collection System a Digital Dial Indicator
