Conditioning Chamber

Sample Conditioning Chamber (115V, 50/60Hz)

Sample Conditioning Chamber (115V, 50/60Hz)

Model: SH-3
$3506.0000
Price: $3,506.00
Sample Conditioning Chamber (220V, 50Hz)

Sample Conditioning Chamber (220V, 50Hz)

Model: SH-3F
$3845.0000
Price: $3,845.00

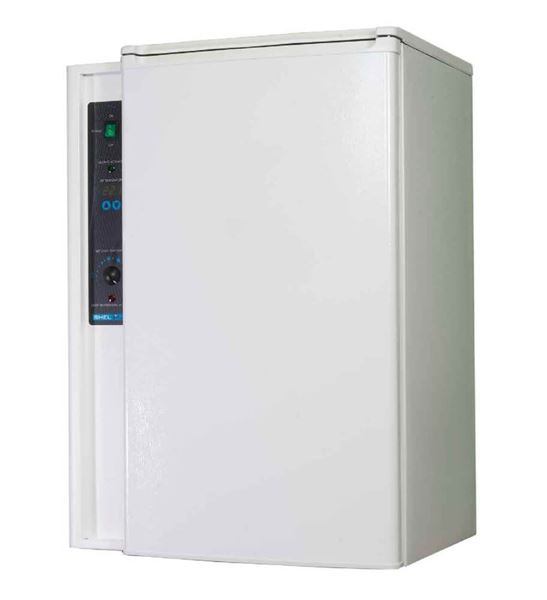

Sample Conditioning Chamber has a compact footprint and holds samples for IDEAL-CT, SCB, I-FIT, or other tests at precise, PID-controlled temperatures from 0.0°C to 45.0°C (32°F to 113°F) ±0.2°C until tested. Continuous forced air circulation maintains chamber uniformity to ±0.5°C. The 2.4ft³ (67.6L) chamber accepts as many as six 6in (152mm) or sixteen 4in (102mm) diameter specimens, depending on height.

The microprocessor controller has an LED display of setpoint and chamber temperatures. Two adjustable shelves are included, and an interior 1 amp double outlet supports the use of data loggers or stirrers in the chamber. The welded steel outer case features a baked enamel finish, and the case is supplied with adjustable leveling feet and a condensation drip tray. Two-year warranty included.

Features:

  • Holds samples at precise, PID-controlled temperatures, 0.0–45.0°C (32–113°F) ±0.2°C until tested
  • Continuous forced air circulation maintains uniformity to ±0.5°C
  • Interior double outlet
  • Microprocessor controller with LED display of setpoint and temperature
  • Compact footprint

Included Items:

  • Sample Conditioning Chamber (115, 50/60Hz or 220V, 50Hz)
  • Two adjustable shelves
  • Two-year warranty
Temperature Range 32–113°F (0.0–45.0°C)
Temperature Stability ±0.2°C
Uniformity ±0.5°C at 20°C
Chamber Capacity 2.4ft³ (67.6L)
Inside Dimensions 16 x 14 x 22.5in (407 x 356 x 572mm), WxDxH
Outside Dimensions 24 x 21 x 33.8in (610 x 534 x 858mm), WxDxH
Estimated Shipping Weight

SH-3: 110.0lb (49.90kg)

SH-3F: 125.0lb (56.70kg)
