1.83ft³ Quincy Analog Lab Oven, 450°F Max (Forced-Air)

1.83ft³ Quincy Analog Lab Oven, 450°F Max (120V, 50/60Hz)

1.83ft³ Quincy Analog Lab Oven, 450°F Max (120V, 50/60Hz)

Model: BO-130
$1235.0000
Price: $1,235.00
1.83ft³ Quincy Analog Lab Oven, 450°F Max (230V, 50/60Hz)

1.83ft³ Quincy Analog Lab Oven, 450°F Max (230V, 50/60Hz)

Model: BO-130F
$1265.0000
Price: $1,265.00

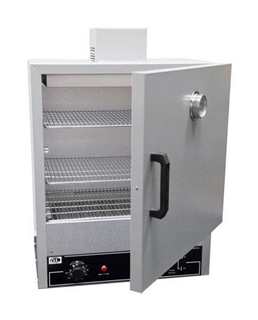

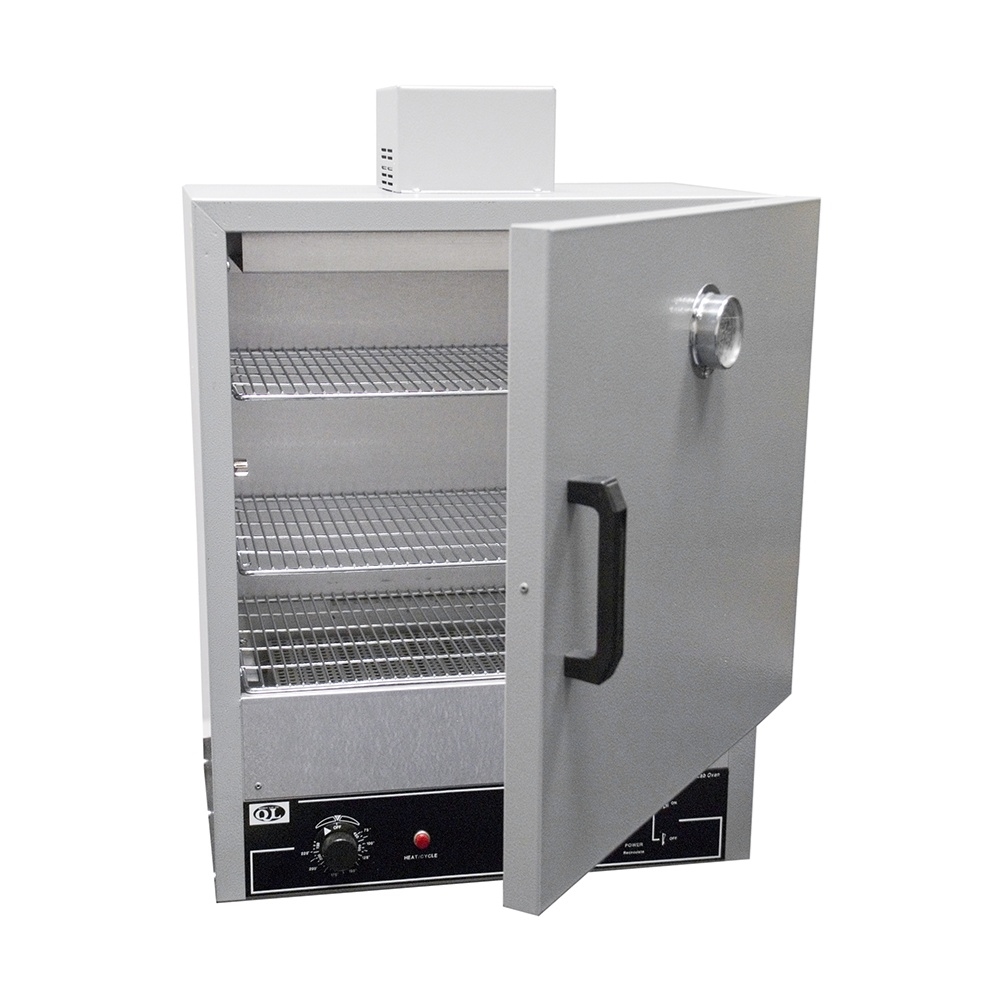

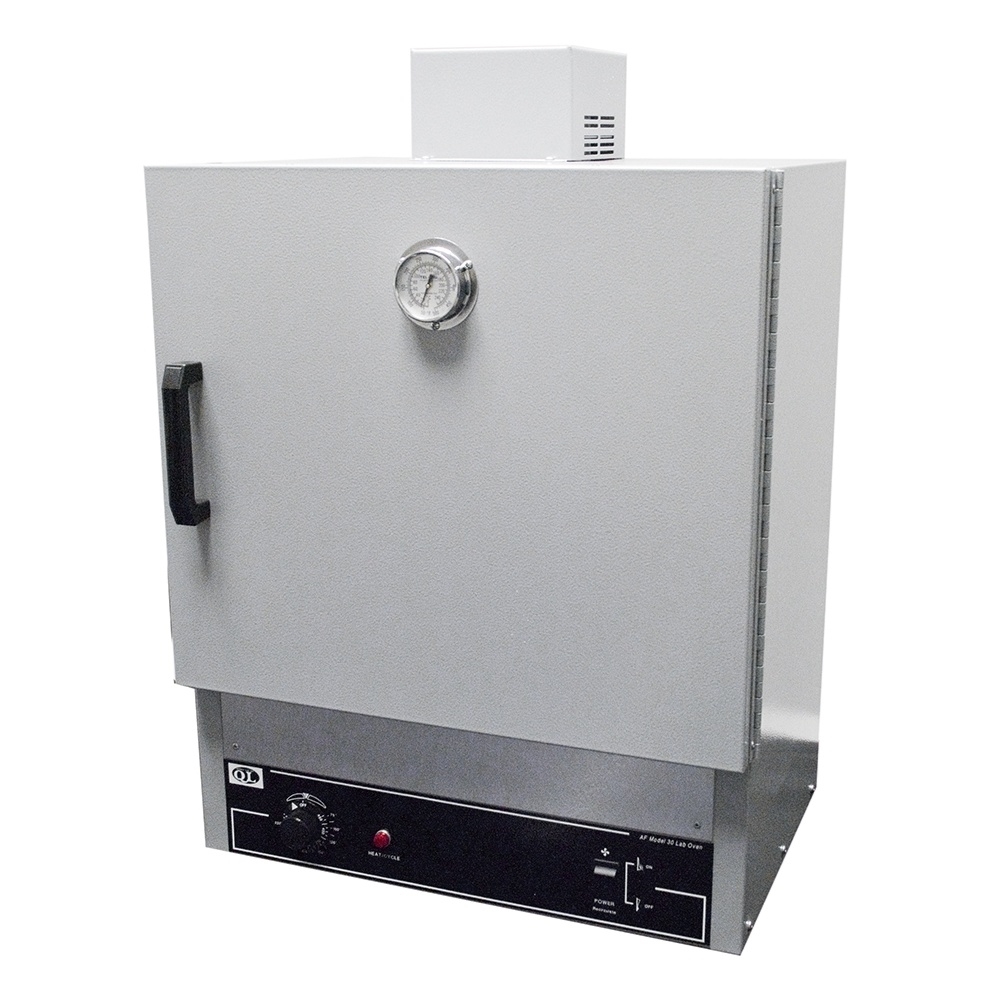

Quincy Lab Ovens have a 1.83ft³ (51.8L) capacity with forced-air convection, hydraulic thermostat, 450°F (232°C) maximum temperature, and ±3°C uniformity for drying and controlled heating applications. Single-door with a high-impact thermoplastic handle, these ovens have one fixed and two adjustable shelves; additional shelves are sold as optional accessories. Each model comes with a two-year warranty.

The control panel includes an illuminated On/Off rocker switch and Heat/Cycle pilot light. Cabinets are heavy steel double-wall construction; the painted exterior has a durable, scratch-resistant hammer-tone finish. The interior is corrosion-resistant aluminized steel, with one-inch high-density mineral wool insulation between the interior and exterior walls. Inquire for an optional factory-installed 12-Hour Timer to shut off operation at a preset time of up to 12 hours. A Hold feature allows for continuous operation.

Forced-air convection models include a special fan and air transfer plenum that allows the oven to maintain a more uniform temperature and a door-mounted dual-range °F/°C dial thermometer. Unique engineering features include energy-efficient, low-watt density Incoloy-sheathed elements that allow for quick run-up and recovery times.

BO-130 Quincy Lab Oven operates on 120V, 50/60Hz and comes with a cord and NEMA 5-15P plug

BO-130F Quincy Lab Oven operates on 230V, 50/60Hz electrical and comes with a cord and NEMA 6-15P plug

Features:

  • 1.83ft³ (51.8L) capacity
  • 450°F (232°C) maximum temperature with ±3°C uniformity for drying and controlled heating applications
  • Hydraulic thermostat
  • Forced-Air convection
  • Special fan and air transfer plenum maintain a uniform temperature
  • Door-mounted dial thermometer
  • Three shelf capacity accommodates a variety of uses

Included Items:

  • 1.83ft³ Lab Oven (120V, 50/60Hz or 230V, 50/60Hz)
  • Three shelves
  • Cord and plug
  • Door-mounted dial thermometer
  • Two-year warranty

Accessories:

Convection Forced Air
Maximum Temperature 450°F (232°C)
Chamber Capacity 1.83ft³ (51.8L)
Uniformity ±3°C
Plug Rating

BO-130: NEMA 5-15P Plug

BO-130F: NEMA 6-15P Plug

Electrical

BO-130: 120V, 50/60Hz, 12.5 Amps

BO-130F: 230V, 50/60Hz, 7.2 Amps

Chamber Dimensions 18 x 12 x 14.13in (457.2 x 304.8 x 358.9mm), WxDxH
Product Dimensions 20 x 14 x 29in (508 x 355.6 x 736.6mm), WxDxH
Estimated Shipping Weight 250.0lb (113.40kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Convection Forced Air
Maximum Temperature 450°F (232°C)
Chamber Capacity 1.83ft³ (51.8L)
Uniformity ±3°C
Plug Rating

BO-130: NEMA 5-15P Plug

BO-130F: NEMA 6-15P Plug

Electrical

BO-130: 120V, 50/60Hz, 12.5 Amps

BO-130F: 230V, 50/60Hz, 7.2 Amps

Chamber Dimensions 18 x 12 x 14.13in (457.2 x 304.8 x 358.9mm), WxDxH
Product Dimensions 20 x 14 x 29in (508 x 355.6 x 736.6mm), WxDxH
Estimated Shipping Weight 250.0lb (113.40kg)
