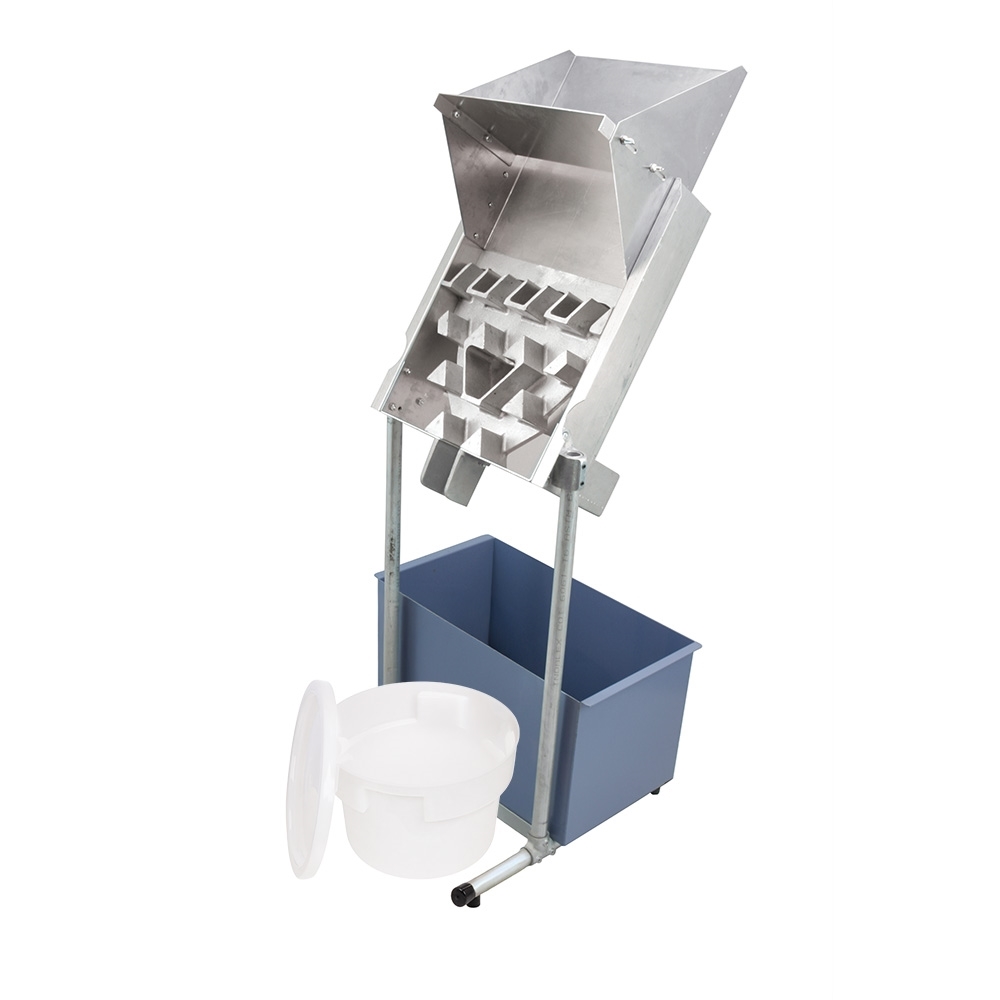

1/16 Sample Reducer

1/16 Sample Reducer separates a representative 1/16 fraction from feed material by systematically rejecting segments of material flowing down the adjustable 45 or 60° cast aluminum incline. Adjustable 0.25ft³ (7L) hopper is used to control sample flow or is locked in the open position for pouring larger samples. Use for particle sizes up to 0.5in (12.7mm).

The Reducer adjusts 10in (254mm) vertically on removable legs. The main components are aluminum. The Sample Reducer is supplied without pans, but SPA-51 Pan Set can be ordered separately.

Features:

• Vertical, removable legs adjust 10in (254mm) vertically
• Durable, aluminum components

Included Items:

• 1/16 Sample Reducer

Accessories:

• SPA-51 Pan Set includes a heavy painted steel waste pan and lightweight polyethylene sample container
