Universal Mini-Splitter with 103.7in³ Hopper Capacity

Gilson Universal Mini-Splitter, 103.7in³ Hopper Capacity

Model: SP-3

$663.5000

Price: $663.50

Qty:

Gilson Universal Mini Splitter, 103.7in³ Hopper Capacity (All Stainless Steel)

Model: SP-33

$1177.0000

Price: $1,177.00

Qty:

Description
Specifications
Video
Questions?

Universal Mini-Splitters are the smallest of Gilson’s exclusive Universal Splitter designs, making them an excellent choice for powders and granular materials with top sizes less than 0.25in (6.4mm). Portable benchtop models are identical in structure and can easily be positioned anywhere. Both feature 48 adjustable 0.125in (3mm) wide chute bars for maximum versatility and are built with stainless steel hoppers and frames. 60° chute angles quickly and accurately split powders and lightweight materials. The spring-loaded gate release hoppers with 103.7in³ (1.7L) capacity make the preparation of bulk samples easy and accurate by evenly releasing material over the chutes for repeatability. Mini-Splitters are supplied with two sample pans for proper operation, and additional pans are available for more efficient sample processing.

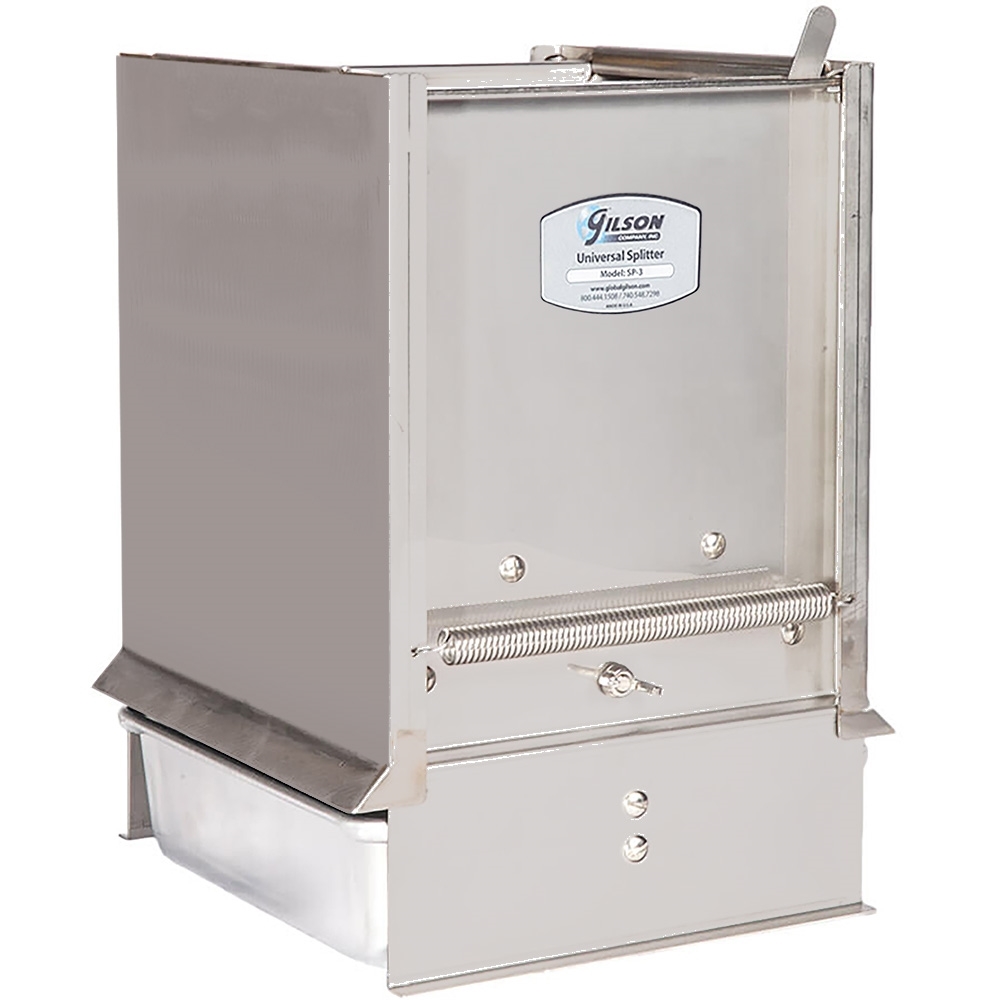

SP-3 Universal Mini-Splitter has a stainless steel hopper and frame. The adjustable chute bars and sample pans are constructed from anodized aluminum.

SP-33 Universal All Stainless Steel Mini-Splitter is constructed entirely of quality stainless steel, including chute bars and sample pans. This feature enhances durability and reduces the risk of sample contamination. This model is an excellent choice for sensitive materials, food-grade samples, or abrasives.

Features:

A great choice for separations of powders and granular materials with top sizes less than 0.25in (6.4mm)
Small models are highly transportable for wherever your testing takes you
48 adjustable .125in (3mm) wide chute bars for maximum versatility
Spring-loaded gate release hoppers evenly release material over chutes for repeatability
Stainless steel construction prevents contamination and enhances durability
Compliant with multiple ASTM and AASHTO standards

Included Items:

Universal Mini-Splitter
Two sample pans

Accessories:

SPA-301 Aluminum Sample Pan, 1.1qt increases productivity when used in addition to the pans included with the SP-3
SPA-302 Dust Enclosure Kit controls nuisance dust during operation and prevents the loss of fines
SPA-303 Stainless Steel Sample Pan increases productivity when used in addition to the pans included with the SP-33

Related blogs:

Maximum Particle Size	0.25in (6mm)
Hopper Capacity	104in³ (1.7L)
Number of Chute Bars	48
Chute Angle	60°
Chute Bar Width	0.125in (3mm)
Product Dimensions	9.5 x 8.5 x 13.5in (241 x 216 x 343mm), WxDxH
Estimated Shipping Weight	SP-3: 10.0lb (4.54kg) SP-33: 15.0lb (6.80kg)
