7.0ft³ Bench Oven, 300°F Max (Analog Controller)

7ft³ Analog Bench Oven, 300°F Max (115V, 50/60Hz)

7ft³ Analog Bench Oven, 300°F Max (115V, 50/60Hz)

Model: BO-250
$2200.0000
Price: $2,200.00
7ft³ Analog Bench Oven, 300°F Max (230V, 50/60Hz)

7ft³ Analog Bench Oven, 300°F Max (230V, 50/60Hz)

Model: BO-250F
$2250.0000
Price: $2,250.00
7ft³ Analog Bench Oven, 300°F Max with All Stainless Interior (115V, 50/60Hz)

7ft³ Analog Bench Oven, 300°F Max with All Stainless Interior (115V, 50/60Hz)

Model: BO-250S
$2540.0000
Price: $2,540.00
7ft³ Analog Bench Oven, 300°F Max with All Stainless Interior (230V, 50/60Hz)

7ft³ Analog Bench Oven, 300°F Max with All Stainless Interior (230V, 50/60Hz)

Model: BO-250SF
$2590.0000
Price: $2,590.00

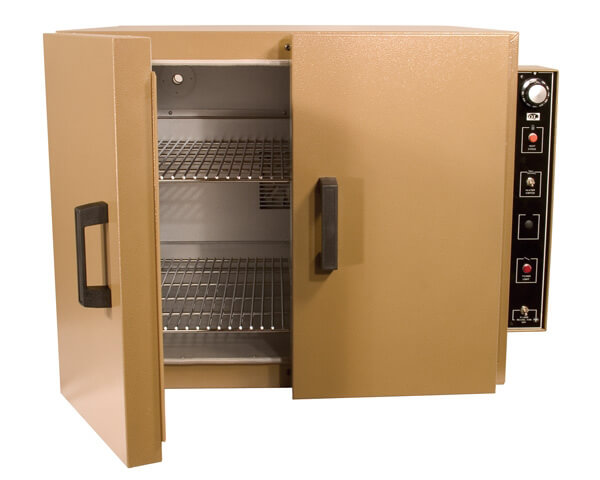

7.0ft³ (198L) Bench Oven has a 300°F (149°C) maximum temperature, and ±2.5°C uniformity for drying and controlled heating applications. Full-width gasket double doors feature high-impact “cool” handles, full-length piano hinges, and a 2in (51mm) high-density mineral wool insulation. The oven holds up to 11 shelves with an 80lb (36kg) capacity that can be adjusted on 1.5in (38.1mm) centers and a hydraulic thermostat with a high/low switch controls heating and recovery rates for standard models. Incoloy-sheathed heating elements have low watt density and a large 0.438in (11.1mm) diameter for long service life. UL-listed and CSA-approved electrical components are 50/60Hz, one phase. Two-year warranty included.

  • BO-250 operates at 115V
  • BO-250F operates at 230V
  • BO-250S operates at 115V with a stainless steel interior
  • BO-250SF operates at 230V with a stainless steel interior

Optional factory-installed BOA-5 12-Hour Timer for Bench and Lab Ovens to shut off operation at a preset time of up to 12 hours. A Hold feature allows for continuous operation.

Features:

  • 7.0ft³ (198L) capacity
  • 300°F maximum temperature with ±2.5°C uniformity for drying and controlled heating applications
  • 11 shelf capacity accommodates a variety of applications
  • Simple high-low switch controls heating and recovery rates

Included Items:

  • 7.0ft³ Bench Oven (115V or 230V), with or without stainless steel interior
  • Two standard shelves
  • Grounded 6ft (1.8m) cord with plug
  • Two-year warranty

Accessories:

Convection Forced Air
Maximum Temperature 300°F (149°C)
Chamber Capacity 7.0ft³ (198L)
Uniformity ±2.5°C
Chamber Dimensions 26 x 24 x 20in (66 x 61 x 51cm), WxDxH
Plug Rating

BO-250 & BO-250S: NEMA 5-15P Plug

BO-250F & BO-250SF: NEMA 6-15P Plug

Electrical

BO-250 & BO-250S: 115V, 50/60Hz / 9.2 Amps / 1 Phase

BO-250F & BO-250SF: 230V, 50/60Hz / 1 Phase

Product Dimensions 33 x 36 x 24in (84 x 91 x 61cm), WxDxH
Estimated Shipping Weight 185.0lb (83.92kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Convection Forced Air
Maximum Temperature 300°F (149°C)
Chamber Capacity 7.0ft³ (198L)
Uniformity ±2.5°C
Chamber Dimensions 26 x 24 x 20in (66 x 61 x 51cm), WxDxH
Plug Rating

BO-250 & BO-250S: NEMA 5-15P Plug

BO-250F & BO-250SF: NEMA 6-15P Plug

Electrical

BO-250 & BO-250S: 115V, 50/60Hz / 9.2 Amps / 1 Phase

BO-250F & BO-250SF: 230V, 50/60Hz / 1 Phase

Product Dimensions 33 x 36 x 24in (84 x 91 x 61cm), WxDxH
Estimated Shipping Weight 185.0lb (83.92kg)
