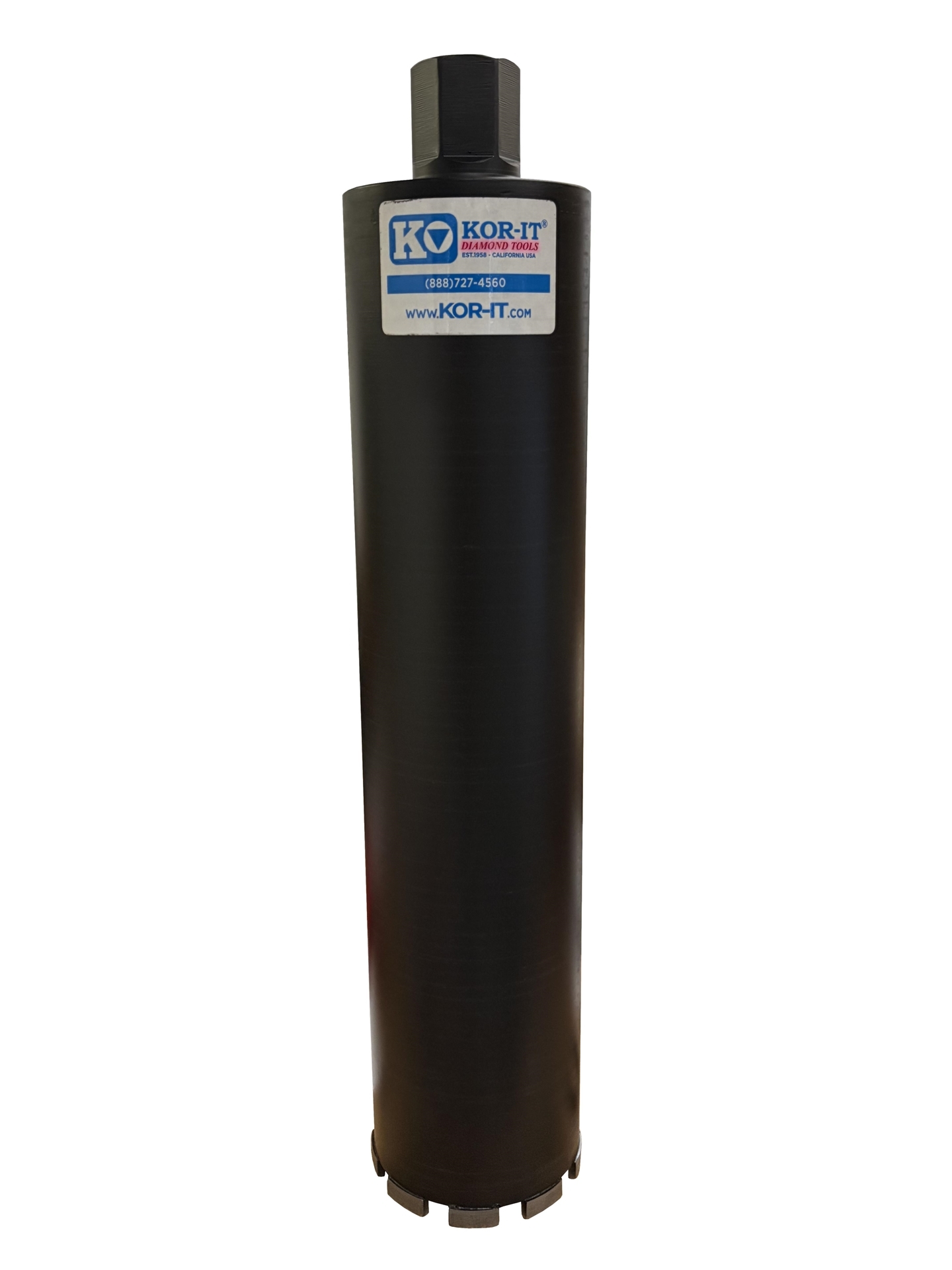

4.25in Asphalt Core Drill Bit (Closed-Head)

Model: CDA-243
$195.0000
Price: $195.00

4.25in (108mm) Asphalt Core Drill Bit (Closed-Head) is for use with electric or gasoline-powered Core Drills. Coring Bits obtain drilled asphalt cores for evaluation and testing. A core bit is a one-piece unit with seamless construction that attaches directly to the drilling machine; it works best for light to medium-duty applications.

Diamond Coring Bits are designed for wet use and are fast cutting when used as recommended. The bit has an overall length of 20.5in (520.7mm) and is capable of coring up to a total depth of 18in (457.2mm). The coring bit can be refurbished when it becomes worn. The final core diameter is approximately 0.25in (6.4mm) smaller than the nominal outside diameter.

Features:

  • Designed for fast cutting based on application
  • Easy connection to the drilling machine
  • Meets ASTM and AASHTO standards
  • Fits standard core drills with 1-1/4” diameter, 7 threads per inch

Included Items:

  • 4.25in Asphalt Core Drill Bit (Closed-Head)
Application Asphalt
Nominal Bit Size, OD 4.25in (108mm)
Mounting Connection Closed-Head
Estimated Shipping Weight 12.0lb (5.44kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Application Asphalt
Nominal Bit Size, OD 4.25in (108mm)
Mounting Connection Closed-Head
Estimated Shipping Weight 12.0lb (5.44kg)
Meets Standard(s)
