Cylinder Splitting Sets

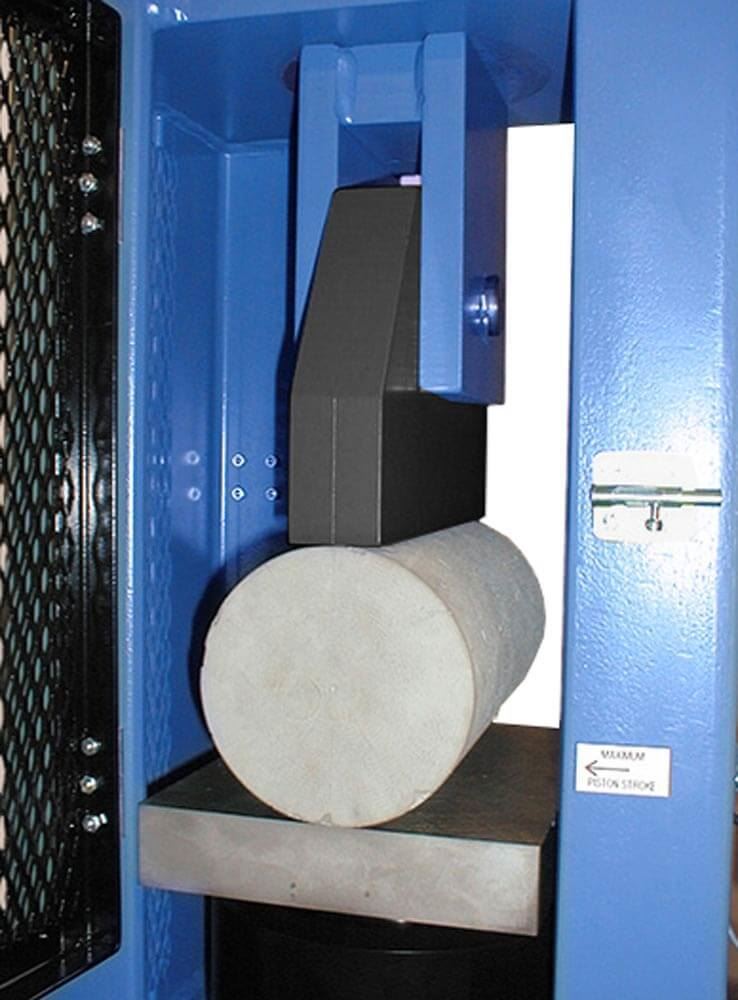

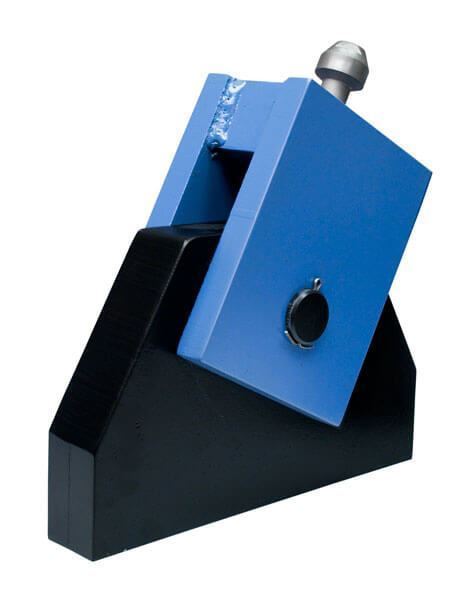

Cylinder Splitting Sets used with the 250, 300, 400, and 500 Series Concrete Compression Machines have a 2x12in (51x304mm) LxW bearing contact area with bar head and platens. The head assembly has a scribed centerline for easy centering of the test sample and attaches to the machine with a locking stem system.

The splitting set for the 250 Series also includes a 12.5x7in (317x178mm) wide lower bearing plate. The set meets ASTM and AASHTO standards for splitting tensile strength of concrete cylinders.

Features:

• Rugged steel construction
• Locking stem system

Included Items:

• Cylinder Splitting Set for 250 Series Compression Machines with 12.5x7in (317x178mm) Lower Bearing Plate, or
  Cylinder Splitting Set for 350 or 400/500 Series Compression Machines
