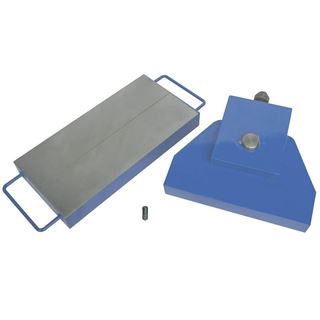

Tensile Cylinder Splitting Set includes a steel bearing bar head with mounting stem for loading horizontally positioned concrete cylinders.
ACA-440 set is designed for use with 4x8in concrete cylinders and is compatible with the AC-250 and AC-325 Automatic Compression Machines, as well as the BC-250 and BC-325 Basic Compression Machines. Set includes a cylinder splitting accessory, 2in (50.8mm) high spacer, bottom platen, and two centering studs.

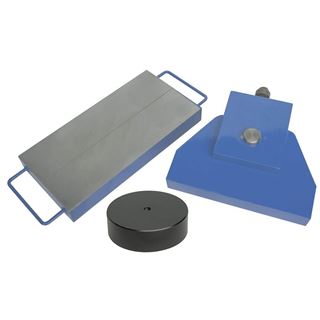

ACA-441 set is designed for use with 4x8in concrete cylinders and is compatible with the AC-450 and AC-650 Automatic Compression Machines, as well as the BC-450 Basic Compression Machines. Set includes a cylinder splitting accessory, 2in (50.8mm) high spacer, and bottom platen.
ACA-442 set is designed for use with 4x8in concrete test cylinders and is compatible with the Rigid Frame (RF) Series Automatic Compression Machines. Set includes a cylinder splitting accessory and bottom platen.

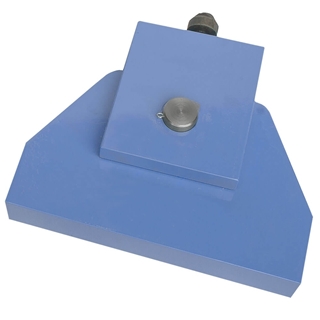

ACA-460 set is designed for use with 6x12in concrete test cylinders and is compatible with Automatic Compression Machines and Basic Compression Machines. Set includes a cylinder splitting accessory, bottom platen, and one centering stud.
ACA-461 set is designed for use with 6x12in concrete test cylinders and is compatible with the Rigid Frame (RF) Series Automatic Compression Machines. Set includes a cylinder splitting accessory.
Included Items
- Tensile Cylinder Splitting Set
