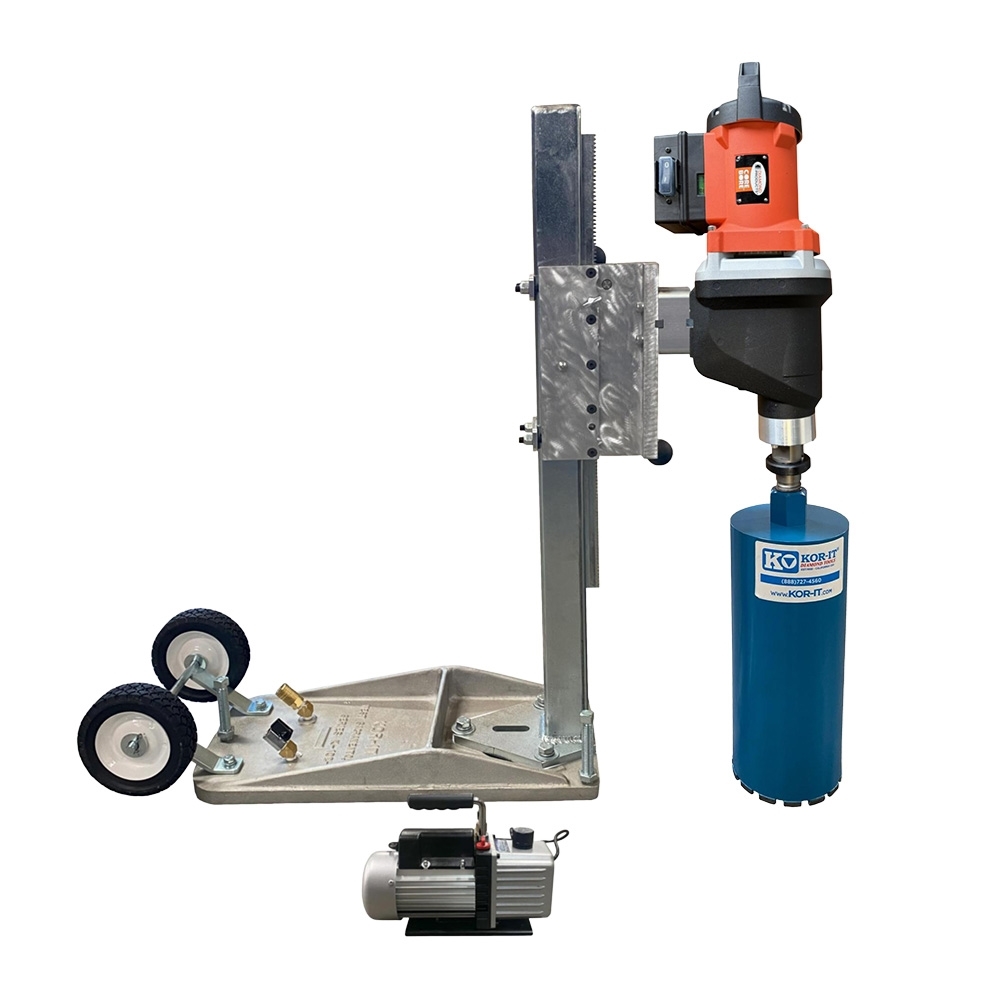

Electric Core Drill

Electric Core Drill is a versatile coring system for a wide range of concrete and asphalt sampling applications. The rugged, economical drill has a powerful electric motor and bit capacities up to 12in (305mm) diameter. Its column rotates 180° horizontally, allowing precise drill bit placement.

The super-duty motor features built-in thermal overload protection, an amp meter, and an integrated on/off switch, so a control panel is not needed to operate. The motor and carriage can be removed or reattached without changing location for ease in snapping cores and adding extension rods. The 10in (254mm) wide-wheeled base has a vacuum anchor and leveling feet to securely anchor the drill to a smooth pavement or floor. Large 6in wheels allow easy mobility. The drill includes an oilless vacuum pump, water swivel, filter, hose, and quick connections. Diamond coring bits are ordered separately.

CD-6 is powered by a three-speed (345/630/1,000rpm) 3.2hp motor.

CD-6F is powered by a four-speed (225/300/565/780rpm) 3.2hp motor.

Features

• Rotating column for precise placement of drill bit
• Motor and carriage are easily removable
• Securely anchors to a smooth pavement or floor
• Includes water connection for wet drilling

Included Items

• Electric Core Drill
• Vacuum Base and mounting column
• Water Swivel
• Oilless vacuum pump, filter, hose, and quick connections

Accessories

• CDA-15 Core Retrieval Tongs for removing 4 or 6in cores from asphalt or concrete surface
• CDA-20 4gal Pressurized Water Tank is a manually-pressurized portable water tank
• CDA-32 Replacement Vacuum Gasket is a replacement piece with mastic for the core drill’s vacuum base
• CDA-24 9in Extension Rod easily attaches for deeper drilling
• CDA-26 18in Drilling Strap Wrench for effortless, damage-free attachment and removal of coring bits
• Asphalt Coring Bits
• Concrete Coring Bits
