Grinding Sets

50mL Grinding Set, Hardened Stainless Steel

50mL Grinding Set, Hardened Stainless Steel

Model: FTA-400
$3242.0000
Price: $3,242.00
100mL Grinding Set, Hardened Stainless Steel

100mL Grinding Set, Hardened Stainless Steel

Model: FTA-401
$3974.0000
Price: $3,974.00
250mL Grinding Set, Hardened Stainless Steel

250mL Grinding Set, Hardened Stainless Steel

Model: FTA-402
$5497.0000
Price: $5,497.00
50mL Grinding Set, Hardmetal Tungsten Carbide

50mL Grinding Set, Hardmetal Tungsten Carbide

Model: FTA-410
$13246.0000
Price: $13,246.00
100mL Grinding Set, Hardmetal Tungsten Carbide

100mL Grinding Set, Hardmetal Tungsten Carbide

Model: FTA-411
$20293.0000
Price: $20,293.00
250mL Grinding Set, Hardmetal Tungsten Carbide

250mL Grinding Set, Hardmetal Tungsten Carbide

Model: FTA-412
$29967.0000
Price: $29,967.00
50mL Grinding Set, Agate

50mL Grinding Set, Agate

Model: FTA-420
$11134.0000
Price: $11,134.00
100mL Grinding Set, Agate

100mL Grinding Set, Agate

Model: FTA-421
$16855.5000
Price: $16,855.50
50mL Grinding Set, Zirconium Oxide

50mL Grinding Set, Zirconium Oxide

Model: FTA-430
$16123.0000
Price: $16,123.00
100mL Grinding Set, Zirconium Oxide

100mL Grinding Set, Zirconium Oxide

Model: FTA-431
$21393.0000
Price: $21,393.00
50mL Grinding Set, Chromium-Free Tool Steel

50mL Grinding Set, Chromium-Free Tool Steel

Model: FTA-440
$3496.5000
Price: $3,496.50
100mL Grinding Set, Chromium-Free Tool Steel

100mL Grinding Set, Chromium-Free Tool Steel

Model: FTA-441
$5071.0000
Price: $5,071.00
250mL Grinding Set, Chromium-Free Tool Steel

250mL Grinding Set, Chromium-Free Tool Steel

Model: FTA-442
$5551.0000
Price: $5,551.00

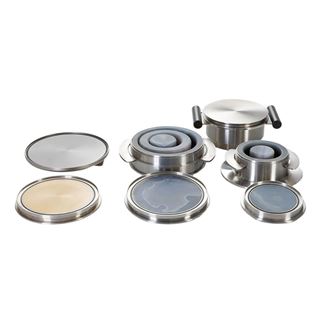

Grinding Set is used with the Fritsch Vibrating Cup Mill to grind sample material. Each set consists of a ring and puck, which grind the sample with extremely high pressure, impact forces, and friction. Grinding Sets are placed on the guide rail of the mill and easily moved into the final position. Using a one-hand lever, the set is properly tensioned in seconds.

Note that the grinding set material must always be harder than the material to be ground.

FTA-400 is made of hardened stainless steel, has a 50mL volume, and is suitable for brittle, hard samples.

FTA-401 is made of hardened stainless steel, has a 100mL volume, and is suitable for brittle, hard samples.

FTA-402 is made of hardened stainless steel, has a 250mL volume, and is suitable for brittle, hard samples.

FTA-410 is made of hardmetal tungsten carbide, has a 50mL volume, and is suitable for very hard, abrasive samples.

FTA-411 is made of hardmetal tungsten carbide, has a 100mL volume, and is suitable for very hard, abrasive samples.

FTA-412 is made of hardmetal tungsten carbide, has a 250mL volume, and is suitable for very hard, abrasive samples.

FTA-420 is made of agate, has a 50mL volume, and is suitable for soft to medium-hard, brittle, fibrous samples.

FTA-421 is made of agate, has a 100mL volume, and is suitable for soft to medium-hard, brittle, fibrous samples.

FTA-430 is made of zirconium oxide, has a 50mL volume, and is suitable for medium-hard, brittle, fibrous samples, as well as metal-free grinding.

FTA-431 is made of zirconium oxide, has a 100mL volume, and is suitable for medium-hard, brittle, fibrous samples, as well as metal-free grinding.

FTA-440 is made of chromium-free tool steel, has a 50mL volume, and is suitable for brittle, hard samples.

FTA-441 is made of chromium-free tool steel, has a 100mL volume, and is suitable for brittle, hard samples.

FTA-442 is made of chromium-free tool steel, has a 250mL volume, and is suitable for brittle, hard samples.

Features

  • Grinding Sets are especially light and equipped with heat-insulated handles
  • Available in a variety of materials and sizes for each grinding application
  • Tensioned in seconds prior to operation using a one-hand lever

Included Items

  • Grinding Sets
Material

FTA-400, FTA-401, FTA-402: Hardened Stainless Steel

FTA-410, FTA-411, FTA-412: Hardmetal Tungsten Carbide

FTA-420, FTA-421: Agate

FTA-430, FTA-431: Zirconium Oxide

FTA-440, FTA-441, FTA-442: Chromium-Free Tool Steel

Capacity

FTA-400, FTA-410, FTA-420, FTA-430, FTA-440: 50mL

FTA-401, FTA-411, FTA-421, FTA-431, FTA-441: 100mL

FTA-402, FTA-412, FTA-442: 250mL

Estimated Shipping Weight

FTA-400, FTA-440: 15.6lb (7kg)

FTA-401, FTA-441: 18lb (8kg)

FTA-402: 20.2lb (9.16kg)

FTA-410: 17.6lb (7.9kg)

FTA-411: 29.7lb (13.5kg)

FTA-412: 30.3lb (13.7kg)

FTA-420: 15.7lb (7.12kg)

FTA-421: 19.8lb (9kg)

FTA-430: 15lb (6.8kg)

FTA-431: 19.2lb (8.71kg)

FTA-442: 20lb (9kg)
