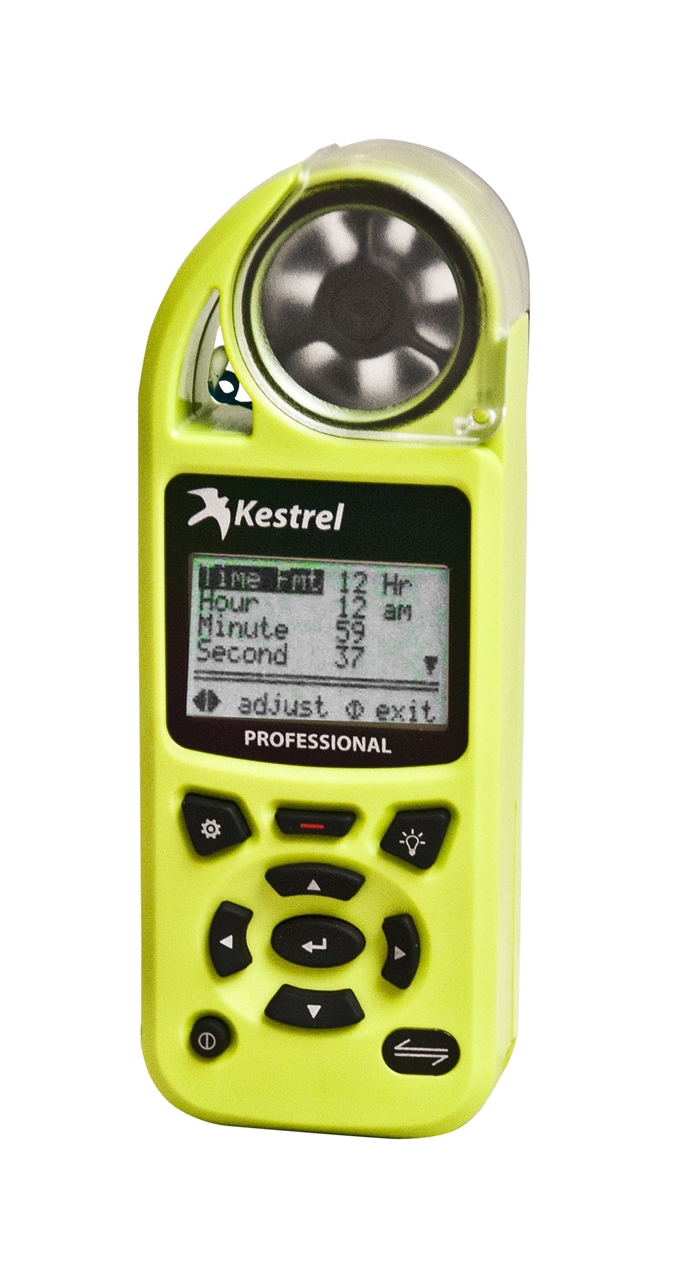

Kestrel® 5200 Professional Environmental Meter

Kestrel 5200 Professional Environmental Meter

Kestrel 5200 Professional Environmental Meter

Model: MA-317
$343.5000
Price: $343.50
Kestrel® 5200 Professional Environmental Meter (Bluetooth Compatible)

Kestrel® 5200 Professional Environmental Meter (Bluetooth Compatible)

Model: MA-317B
$415.0000
Price: $415.00

Kestrel® 5200 Professional Environmental Meters are handheld, portable units with built-in evaporation rate calculators for monitoring the conditions allowing plastic shrinkage cracking in fresh concrete.

Meeting ACI 308R guidelines for documentation of concrete placement and curing conditions. The meters offer a complete suite of environmental measurements and calculations, including air temperature, wind speed, relative humidity, barometric pressure, evaporation rate, dew point, heat stress, and wind chill.

The high-resolution display and dual-color backlight provide visibility in any lighting conditions. The display window is break and scratch-resistant. Waterproof to IP67 and drop-tested to MIL-STD-810G. Up to 2,900 data points can be uploaded and stored to a PC with the MAA-166 USB Transfer Cable.

MA-317 Kestrel® 5200 Professional Environmental Meter can transfer data to a PC via the MAA-166 USB Transfer Cable.

MA-317B Kestrel® 5200 w/LiNK Professional Environmental Meter provides Wi-Fi connectivity to a smartphone or tablet for remote monitoring. The Link Enabled model can communicate directly to a Windows or Mac computer via Wi-Fi when used with the MAA-167 Kestrel LiNK® Dongle, purchased separately.

Features:

  • Comprehensive environmental measurements
  • Built-in evaporation rate calculators
  • Break-resistant, high-resolution display
  • Intuitive display
  • Optional Wi-Fi connectivity
  • Waterproof to IP67 and drop-tested to MIL-STD-810G

Included Items:

  • Kestrel® 5200 Professional Environmental Meter (with or without LINK Environmental Meter)
  • Waterproof carrying pouch
  • Wrist lanyard
  • AA lithium battery

Accessories:

  • MAA-162 Mini Tripod allows hands-free operation of the meter and acts as a mount for the Portable Wind Vane
  • MAA-163 Portable Wind Vane Mount keeps the Environmental Meter oriented into the wind
  • MAA-166 USB Transfer Cable allows the meter to transfer data points to a PC
  • MAA-167 Kestrel® Dongle allows the LINK model to transfer data via Wi-Fi to a PC
Temperature Range -20°–158°F (-29°–70°C)
Temperature Accuracy 0.9°F (0.5°C)
Resolution Temperature: 0.1°
Humidity Range 10 to 90% Non-Condensing
Humidity Accuracy 0.1%
Humidity Resolution ±2%
Pressure Range: 20.67–32.48 in Hg at 25°C, Resolution: 0.01 in Hg, Accuracy: ±0.044 in Hg
Wind Speed Range: 1.3–89.5mph reading (2.2–144.0km/h), Division: 0.1mph (0.1km/h), Accuracy: ±3% of Reading
Power Supply (1) AA Battery
Product Dimensions 4.8x1.9x1.1in (122x48x28mm), WxDxH
Estimated Shipping Weight 1.0lb (0.45kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Temperature Range -20°–158°F (-29°–70°C)
Temperature Accuracy 0.9°F (0.5°C)
Resolution Temperature: 0.1°
Humidity Range 10 to 90% Non-Condensing
Humidity Accuracy 0.1%
Humidity Resolution ±2%
Pressure Range: 20.67–32.48 in Hg at 25°C, Resolution: 0.01 in Hg, Accuracy: ±0.044 in Hg
Wind Speed Range: 1.3–89.5mph reading (2.2–144.0km/h), Division: 0.1mph (0.1km/h), Accuracy: ±3% of Reading
Power Supply (1) AA Battery
Product Dimensions 4.8x1.9x1.1in (122x48x28mm), WxDxH
Estimated Shipping Weight 1.0lb (0.45kg)
