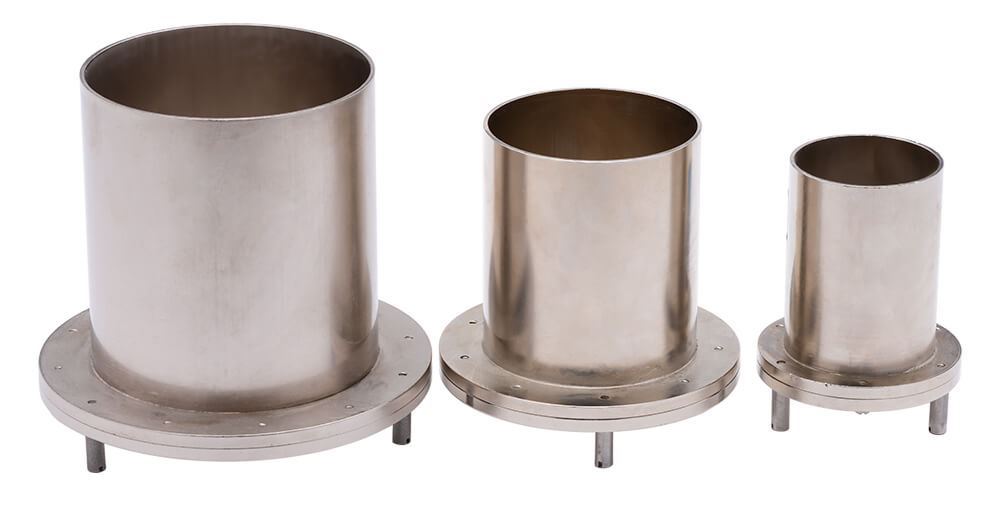

Two-Piece Nickel-Plated Wet-Wash Sieve Frames

4in Two-Piece Nickel Plated Wet-Wash Sieve Frame

4in Two-Piece Nickel Plated Wet-Wash Sieve Frame

Model: WT-60
$124.0000
Price: $124.00
3in Two-Piece Nickel Plated Wet-Wash Sieve Frame

3in Two-Piece Nickel Plated Wet-Wash Sieve Frame

Model: WT-61
$170.0000
Price: $170.00
2in Two-Piece Nickel Plated Wet-Wash Sieve Frame

2in Two-Piece Nickel Plated Wet-Wash Sieve Frame

Model: WT-62
$160.0000
Price: $160.00

Two-Piece Nickel-Plated Wet-Wash Sieve Frames are corrosion-resistant, dry easily in ovens or on hot plates after washing, and use replaceable ASTM E11 stainless steel mesh discs, available separately.

Gilson’s popular two-piece frames are available in three sizes: 2 x 3in, 3 x 3.5in, and 4 x 4.5in. The three threaded, removable legs aid drying and add 1in to the overall height. They use solderless construction to expedite drying and special notched stainless steel mesh discs are held in nickel-plated frames with machine screws.

Features:

  • Resistant to corrosion
  • Solderless construction for efficient drying
  • Threaded legs offer further support and drying capability

Included Items:

  • Nickel-Plated Wet Wash Sieve Frame (2in, 3in or 4in)

Accessories:

Material Nickel Plated
Sieve Frame Diameter

WT-60: 4in (102mm)

WT-61: 3in (76mm)

WT-62: 2in (51mm)

Frame Height Above Cloth

WT-60: 4.5in (114mm)

WT-61: 3.5in (89mm)

WT-62: 3in (76mm)

Product Dimensions

WT-60: 4 x 5.5in (102 x 140mm) dia.xH

WT-61: 3 x 4.5in (76 x 114mm) dia.xH

WT-62: 2 x 4in (51 x 102mm) dia.xH

Estimated Shipping Weight 1.0lb (0.45kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Material Nickel Plated
Sieve Frame Diameter

WT-60: 4in (102mm)

WT-61: 3in (76mm)

WT-62: 2in (51mm)

Frame Height Above Cloth

WT-60: 4.5in (114mm)

WT-61: 3.5in (89mm)

WT-62: 3in (76mm)

Product Dimensions

WT-60: 4 x 5.5in (102 x 140mm) dia.xH

WT-61: 3 x 4.5in (76 x 114mm) dia.xH

WT-62: 2 x 4in (51 x 102mm) dia.xH

Estimated Shipping Weight 1.0lb (0.45kg)
Meets Standard(s)
