Proceq Pundit UPV Transducers

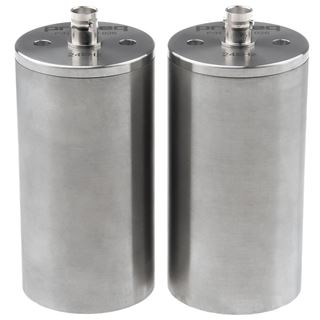

24kHz Transducers

Model: CTA-30

$1145.0000

Price: $1,145.00

Qty:

54kHz Exponential Transducers

Model: CTA-33

$1865.0000

Price: $1,865.00

Qty:

150kHz Transducers

Model: CTA-35

$1145.0000

Price: $1,145.00

Qty:

250kHz Transducers

Model: CTA-36

$1145.0000

Price: $1,145.00

Qty:

500kHz Transducers

Model: CTA-37

$2750.0000

Price: $2,750.00

Qty:

Description
Specifications
Questions?

Proceq Pundit UPV Transducers are available in multiple frequencies to accommodate aggregate (grain) size and the dimensions of the test object. Transducers allow more depth of penetration or better resolution for Proceq Pundit Ultrasonic Pulse Velocity Instruments.

CTA-30 24kHz Transducers is used for concrete, aggregate and large objects
CTA-33 54kHz Exponential Transducers with Calibration Rod is used for rough concrete and rounded surfaces (no couplant required)
CTA-35 150kHz Transducers is used for fine-grained material, small objects
CTA-36 250kHz Transducers is used for fine-grained material, rock, cores
CTA-37 500kHz Transducers is used for very fine-grained material, rock, use on small samples limited by the size of the transducer

Included Items:

Transducers (24, 54, 150, 250, or 500kHz)

Accessories:

CTA-38 Transducer Holder

Wavelength	CTA-30: 154mm CTA-33: 68.5mm CTA-35: 24.7mm CTA-36: 14.8mm CTA-37: 7.4mm
Maximum Particle Size	CTA-30: ≈ 77mm CTA-33: ≈ 34mm CTA-35: ≈ 12mm CTA-36: ≈ 7mm CTA-37: ≈ 3mm
Dimensions	Minimum Lateral: CTA-30: ≈ 154mm CTA-33: 69mm CTA-35: 25mm CTA-36: 15mm CTA-37: 7mm
Estimated Shipping Weight	CTA-30: 3.0lb (1.36kg) CTA-33: 1.0lb (0.45kg) CTA-35: 1.0lb (0.45kg) CTA-36: 1.0lb (0.45kg) CTA-37: 1.0lb (0.45kg)
