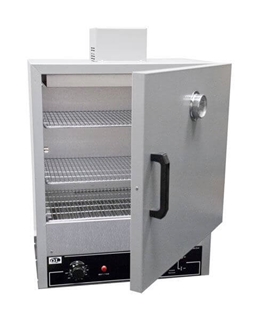

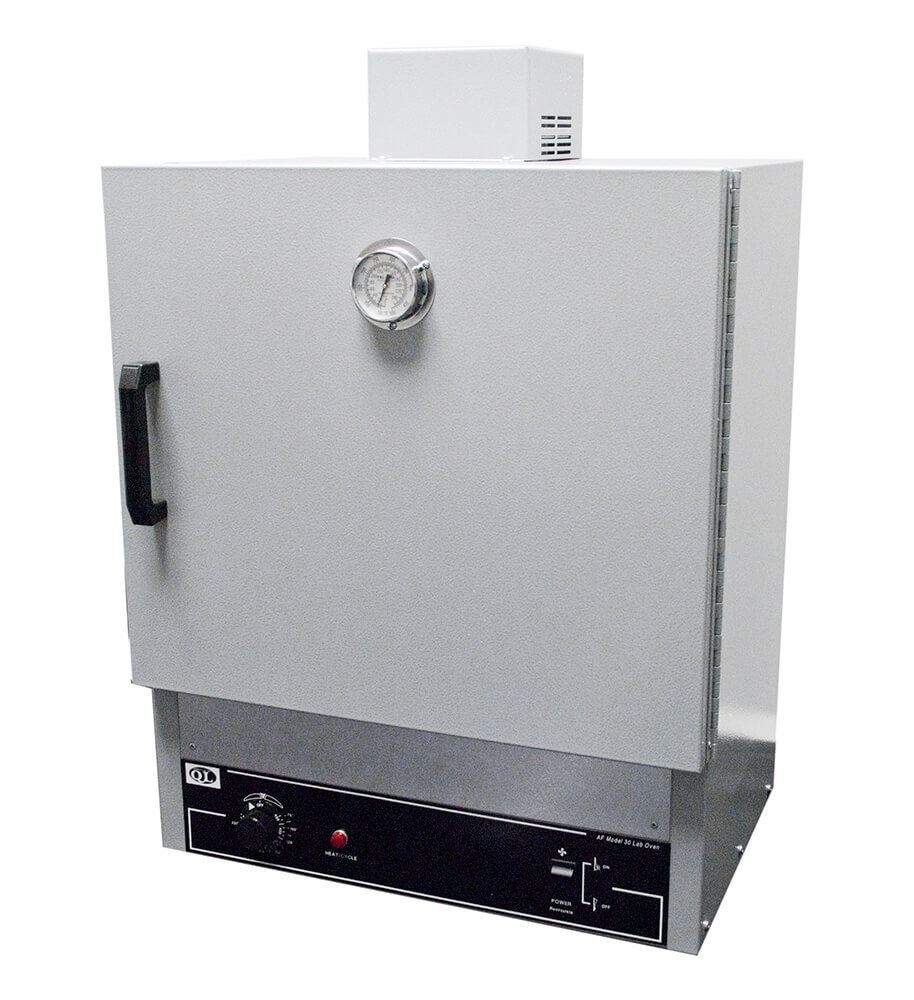

1.14ft³ Quincy Analog Lab Oven, 450°F Max (Forced-Air)

Quincy Lab Ovens have a 1.14ft³ (32.3L) capacity with forced-air convection, hydraulic thermostat, 450°F (232°C) maximum temperature, and ±3°C uniformity for drying and controlled heating applications. Single-door with a high-impact thermoplastic handle, these ovens have one fixed and two adjustable shelves; additional shelves are sold as optional accessories. Each model comes with a two-year warranty.

The control panel includes an illuminated On/Off rocker switch and Heat/Cycle pilot light. Cabinets are heavy steel double-wall construction; the painted exterior has a durable, scratch-resistant hammer-tone finish. The interior is corrosion-resistant aluminized steel, with one-inch high-density mineral wool insulation between the interior and exterior walls. Inquire for an optional factory-installed 12-Hour Timer to shut off operation at a preset time of up to 12 hours. A Hold feature allows for continuous operation.

Forced-air convection models include a special fan and air transfer plenum that allows the oven to maintain a more uniform temperature and a door-mounted dual-range °F/°C dial thermometer. Unique engineering features include energy-efficient, low-watt density Incoloy-sheathed elements that allow for quick run-up and recovery times.

BO-120 Quincy Lab Oven operates on 120V, 50/60Hz and comes with a cord and NEMA 5-15P plug.

BO-120F Quincy Lab Oven operates on 230V, 50/60Hz and comes with a cord and NEMA 6-15P plug.

Features:

• 1.14ft³ (32.3L) capacity
• 450°F (232°C) maximum temperature with ±3°C uniformity for drying and controlled heating applications
• Hydraulic thermostat
• Forced-Air convection
• Special fan and air transfer plenum maintain a uniform temperature
• Door-mounted dial thermometer
• Three shelf capacity accommodates a variety of uses

Included Items:

• 1.14ft³ Lab Oven (120V, 50/60Hz or 230V, 50/60Hz)
• Three shelves
• Cord and plug
• Door-mounted dial thermometer
• Two-year warranty

Accessories:

• BOA-5 Factory-Installed 12hr Timer for Bench and Lab Ovens shuts off the oven at selected elapsed time and has a hold feature
• BOA-31 Extra Shelf for Quincy Lab Oven increases drying and heating capacity
• BOA-6 Dual-Range In-Door Thermometer provides verification of chamber temperature during operation
