2,000g / 4,000g Pycnometers

Vacuum Pycnometers determine the maximum specific gravity in bituminous paving mixtures. The SG-16A and 18A models meet ASTM D2041 and AASHTO T 209 standards and are used with the SGA-5R Rice Shakers for Specific Gravity and Asphalt Rice Test.

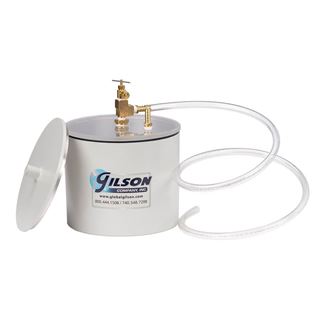

SG-16A 2,000g Pycnometer ensures accurate, specific gravity measurements. This precision-machined aluminum volumetric canister is 7.5x6in (191x152mm) IDxH and tests a maximum of 2,000g (4.4lb) sample, sufficient for mixes with up to 0.75in (19.1mm) aggregates. A transparent vacuum lid, second tapered aluminum lid with a capillary bore, 3/8in (9.5mm) threaded vacuum aspirator, and tubing 3/8x48in (9.5x1,219mm) ID x L are included, allowing the canister to be used as a volumeter for determining the specific gravity of compacted bituminous mixtures.

SG-18A 4,000g Pycnometer features increased sample capacity over SG-16A. Its 7.5x9in (191x229mm) IDxH aluminum volumetric canister has enough volume for specimens up to 4,000g, sufficient for mixes with up to 1.5in (38.1mm) aggregates. Included transparent acrylic vacuum lid and aluminum lid with capillary bore are identical to SG-16A lids for use in specific gravity determinations of compacted bituminous mixtures. Vacuum tubing 3/8x48in (9.5x1,219mm) ID x L, quick-disconnect, and a 3/8in (9.5mm) threaded vacuum aspirator are also included.

Features:

• Doubles as a specific gravity gauge for bituminous mixtures and compacted specimens
• Meets ASTM D2041 and AASHTO T 209 requirements
• SG-16A holds up to a 2,000g maximum sample, while SG-18A can accommodate up to 4,000g

Included Items:

• Pycnometer, 2,000 or 4,000g
• Vacuum Lid
• Aluminum Lid with a capillary bore
• Vacuum 3/8in Tubing with a threaded vacuum aspirator
• (2) hose clamps

Accessories:

• Density Weighing Cradles for determining specific gravity or bulk density with suspension weighing
• Clear Vinyl Tubing for use with pycnometers, available in 1/4 or 3/8in
• MA-198 Hose Clamp adjustable to regulate flow through vinyl tubing
