CBR Component Set with 10,000lbf, Digital or Analog

CBR Component Set with 10,000lbf Load Cell comes with equipment needed to equip Load Frames for performing California Bearing Ratio (CBR) Tests. Each component in the set can be easily installed on the Load Frames with included fixtures and HMA-668 Readout Mounting Bracket available separately.

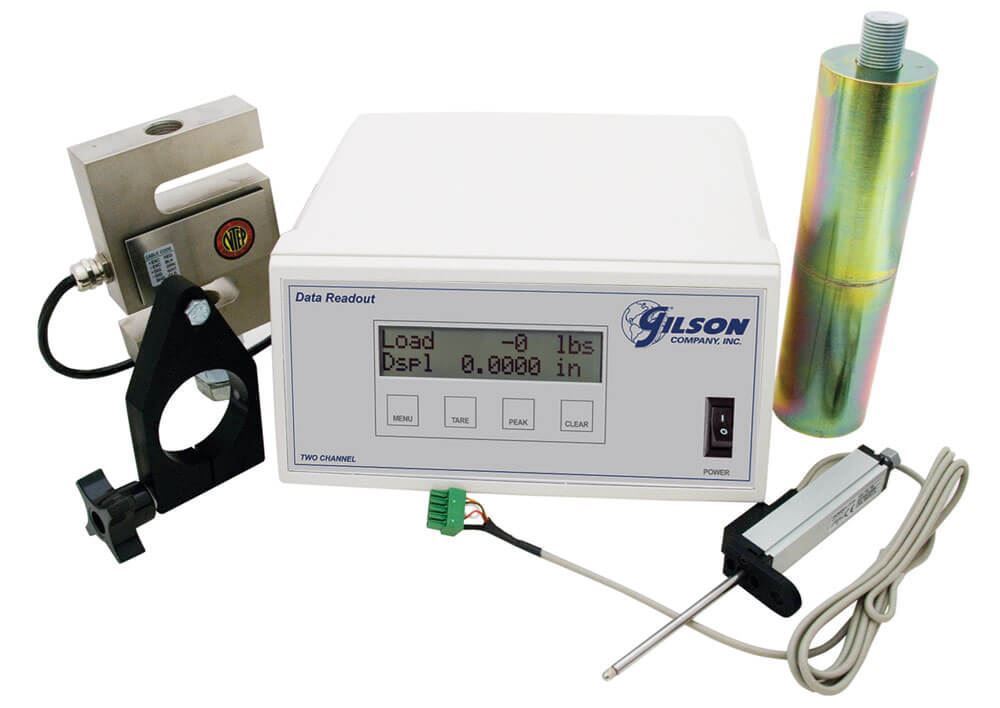

The Digital CBR Component Set has the BRA-30 CBR Penetration Piston, BRA-34 Transducer/Dial Indicator Holder, HMA-418 Two-Channel Data Readout, HM-430D 10,000lbf Load Cell, and HM-740 2in (50.8mm) Linear Variable Displacement Transducer.

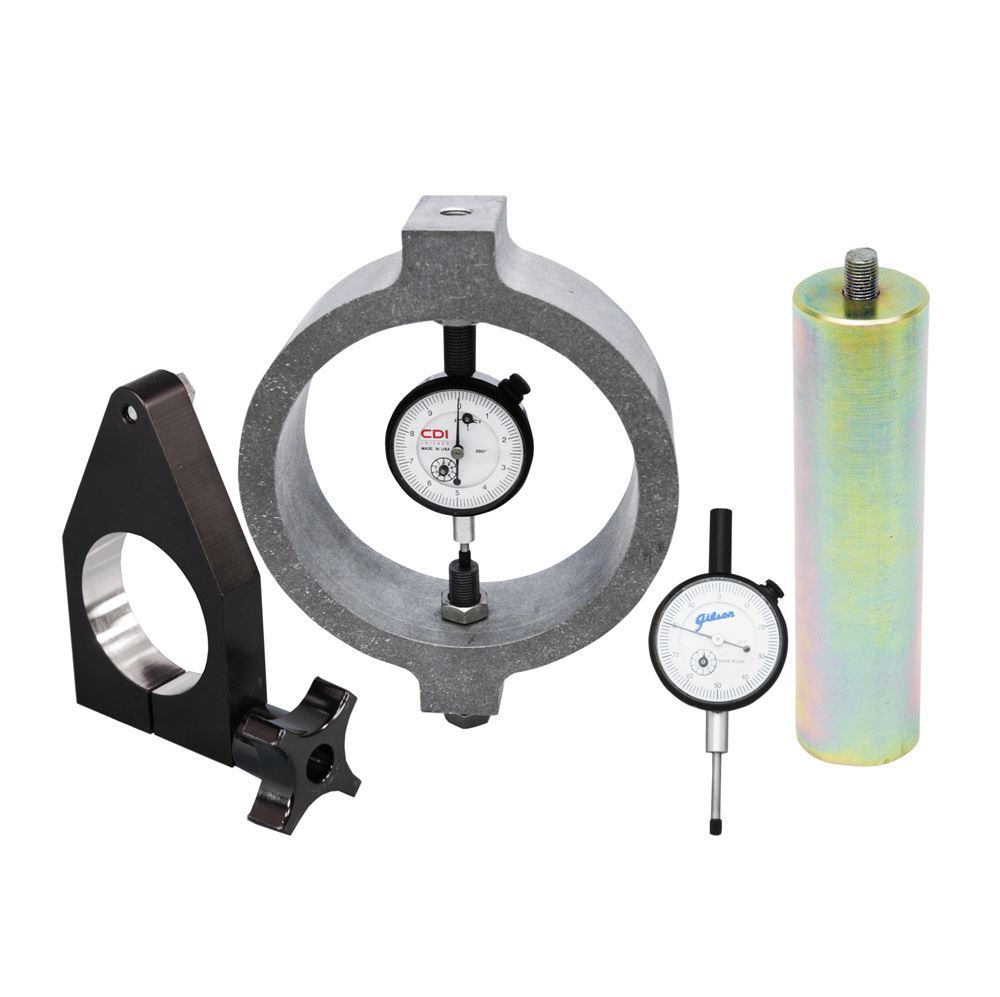

The Analog CBR Component Set includes a BRA-31 1/2in (12.7mm) diameter CBR Penetration Piston and the BRA-34 Transducer/Dial Indicator Holder which secures the Penetration Piston on the Load Frame. Also in the kit is the HM-430 10,000lbf Load Ring used in measuring applied force, and the MA-334 Dial Indicator, 1x0.001in for displacement readings.

Features:

• The digital design includes software for data transfer to the user’s PC
• Simple installation of components on the load frame

Included Items:

• 10,000lbf Capacity Digital CBR Component Set
  • CBR Penetration Piston
  • Transducer/Dial Indicator Holder
  • 10,000lbf (Load Cell or Load Ring)
  • 2in Linear Variable Displacement Transducer (DIgital Sets Only)
  • Two-Channel Data Readout (115V/50-60Hz or 230V/50-60Hz Digital Sets Only)
  • 1x0.001in Dial Indicator (Analog Set Only)

Accessories:

• BRA-34 Transducer/Dial Indicator Holder for proper positioning of transducers or dial indicators
• HM-430D Load Cell outputs load values to the digital display
• HMA-609 CBR/LBR Data Acquisition Software works with the HMA-685D CBR/LBR Digital Component Set to record specimen information and display real-time test data, calculate results, then prepare reports following ASTM and AASHTO requirements.
• HMA-668 Readout Mounting Bracket positions digital readout
• HM-740 2in Linear Variable Displacement Transducer for digital displacement measurement
• Penetration Pistons available with 1/2 or 3/4in threaded male connectors
• Data Readout with two or four channels display force and displacement values and transfer data to a computer
