Data Readouts

Data Readouts accept input from the digital force, pressure, and displacement devices used in laboratory soil testing and other applications. They feature discrete analog to digital (A/D) converters for each channel, producing simultaneous readings without time-delay errors, and are available with two or four channels.

Both units are self-contained with large real-time, illuminated displays and may be paired with load cells and digital transducers. A data port for the user’s PC is included. The included software exports data via the Mini-USB port to Excel® or other spreadsheets for review, analysis, and plotting of graphs. Compatible with Windows® XP, 7, 8, and 10 operating systems. HMA-668 Readout Mounting Bracket is available separately.

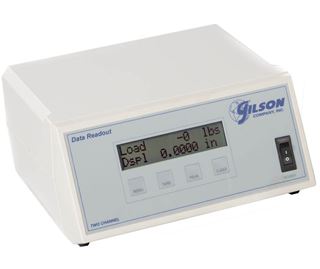

HM-418 is a two-channel data readout.

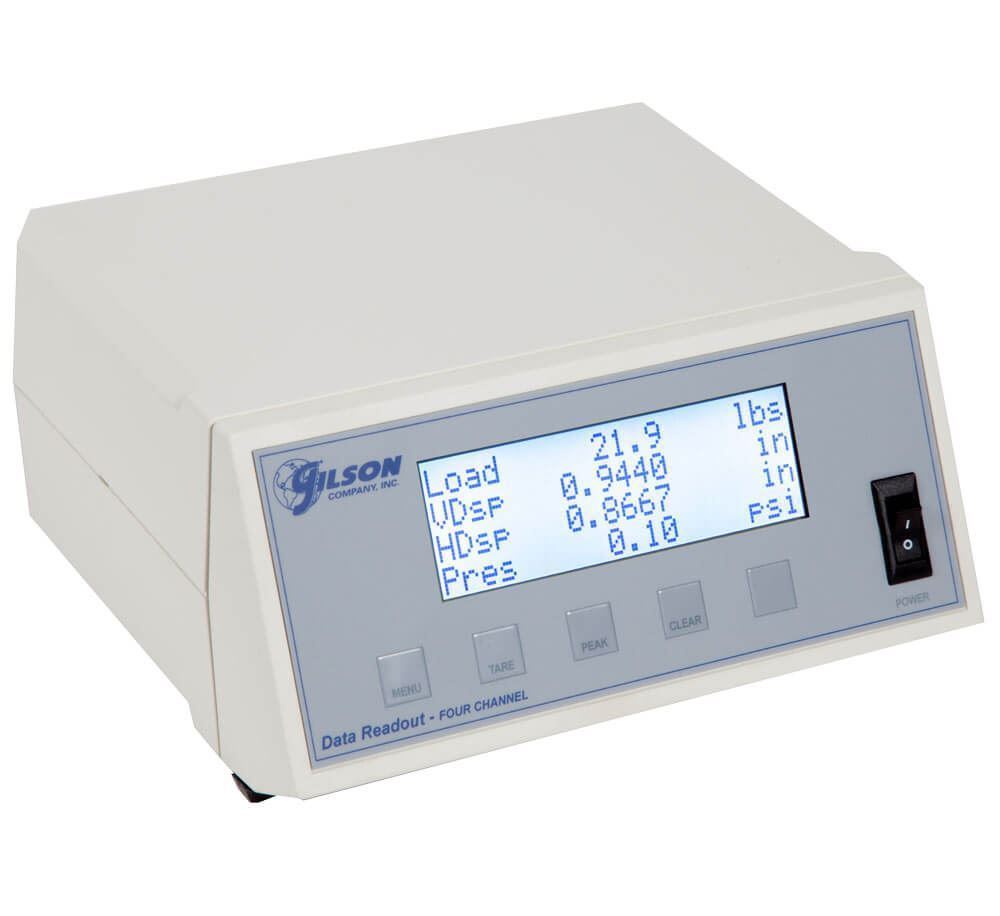

HM-419 is a four-channel data readout.

Features:

• An optimal solution for delivering instantaneous, accurate readings
• Self-contained units with an easy-to-read display
• Two to four channels
• Convenient Mini-USB port and software to export data values into a spreadsheet

Included Items:

• Data Readouts, Two- or Four-Channel (120V, 50/60Hz or 230V, 50/60Hz)
• Mini-USB to USB Data Cable
• GetData 5 Software

Accessories:

• Load Cells for outputting tension or compression values to the readout boxes
• Linear Variable Displacement Transducers provide digital displacement measurement with a range of 1 or 2in
• HMA-668 Readout Mounting Bracket for convenient positioning of data readouts on the load frame
• Data Acquisition Software records specimen and real-time test data for a wide range of soil laboratory tests and prepares reports following applicable ASTM and AASHTO requirements.
• HMA-525 Pore Pressure Transducer with Deairing Block for precise measurement of pore water pressure in the soil sample
