Manual Universal Penetrometer

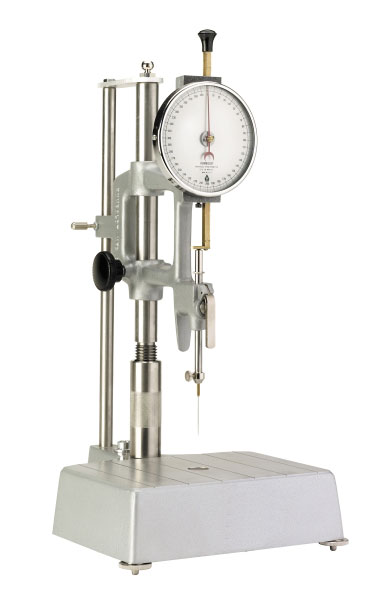

Manual Universal Penetrometer is ruggedly constructed for accurate, sensitive measurements. The aluminum base has a machined, grooved table with leveling screws and rubber inserts to protect tips of needles and cones. Two stainless steel rods act as support guides for a cast aluminum head with coarse/fine adjustments and a calibrated friction-free plunger mechanism. Indicator dial has instant zero-reset and is graduated in 400 divisions of 0.1mm, corresponding to 40mm penetration. Any needle or cone with standard 1/8in (3mm) diameter stem can be mounted to the 47.5g plunger assembly. A standard 2.5g ASTM D 5 Needle and two additional loading Weights (50g and 100g) are included.

Features:

• Rugged, affordable model meets ASTM and AASHTO requirements
• Machined, grooved table and leveling screw with rubber inserts protects needle and cone tips
• Indicator dial has instant zero-reset for fast set up when testing multiple samples

Included Items:

• Manual Penetrometer
• Standard 2.5g ASTM D 5 Needle
• One 50g Additional Loading Weight
• One 100g Additional Loading Weight

Accessories:

• Grease Penetration Cones for Universal Penetrometer solid magnesium, or hollow brass or stainless steel cone for penetration testing of grease
• HMA-181 Wax Penetration Needle for Universal Penetrometer has truncated cone-shaped tip and used in the testing of bituminous materials
• HMA-180 Universal Penetrometer Needle with standard tip, used in the testing of bituminous materials
• HMA-188 Transfer Dish for Universal Penetrometer securely holds sample containers during the transfer from the bath for penetration testing
• SC-500 3oz Tinned-Metal Sample Containers for measuring and sampling material
• SC-504 6oz Tinned-Metal Sample Container for measuring and sampling material
