The Windsor Probe System is optimal for accurately and rapidly determining the developing strength of concrete for on-site field assessments. The probe complies with ASTM C803/803M and other test standards.
A powder-actuated driving unit that fires steel probes into hardened concrete. The average penetration of three probes is used to confirm laboratory test results, measure compressive strength, and assess uniformity. ASTM recommends compressive strength correlation with the particular mix design tested.
A redesigned actuating template ensures a more accurate and reliable operation. The driver cannot be discharged unless pushed firmly against the actuating template. This redesigned system has the capability to measure concrete with a maximum compressive strength of 17,000psi (110MPa).
WP-530 Standard Test System is a cost-effective choice for users with limited needs. The system is supplied with a manually operated penetration gauge to measure probe length and a printed chart for estimating concrete strength. Probe lengths can be measured in either inches or millimeters. The standard system can be upgraded to the digital test system with WP-700 Electronic Measuring Upgrade.
WP-532A Digital Test Systemis an advanced system features electronic acquisition and calculation of probe penetration data, enhancing accuracy and efficiency. The menu-driven electronic measuring system is easy to operate. Simply enter parameters of aggregate hardness and concrete type, position the measuring unit over each probe, and press “Enter” to determine probe depths.
The digital test system automatically averages, displays, and stores depth readings in memory along with date and time. The calculation displays strengths in pounds per square inch (psi) or megapascal (MPa) units. The data can be uploaded to a PC with included software cables.
Both systems comes in a sturdy, portable carrying case with all the components needed for preparation, positioning, and measuring. Also included is a kit for determining the Mohs Hardness of coarse aggregate. Probes with power loads are purchased separately. Inquire for pricing of probe case quantities of ten or more.
Note: Due to export regulations, this item cannot be shipped outside of the United States.
Features:
- Optimal for accurately and rapidly determining the developing strength of concrete
- Electronic measuring system enhances accuracy and efficiency
- Measurement to 17,000psi (117MPa)
- Memory for data storage and uploading to PC
- Safe to operate with no recoil or accidental discharge
- Compliant with ASTM C803/803M and other standards

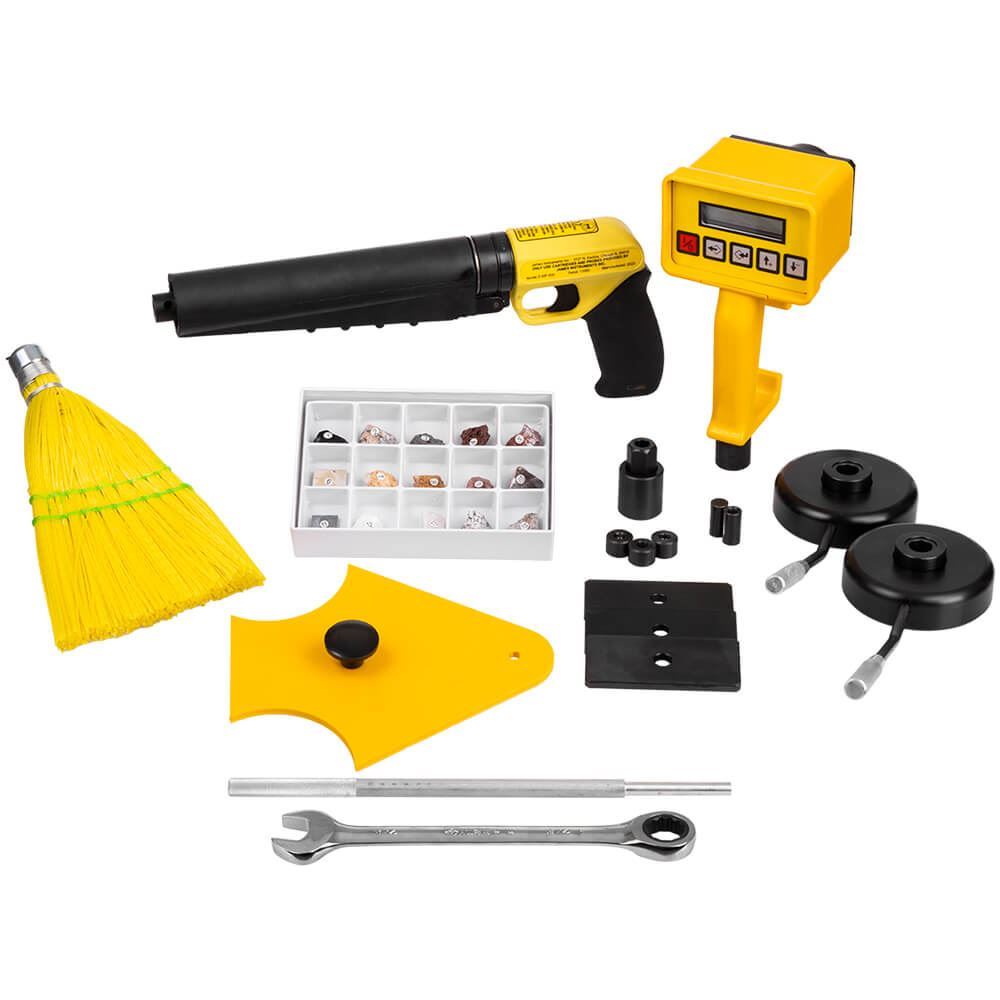

Included Items:
- Windsor Probe Test System (Standard or Digital)
- Power driver
- Calibration certificate
- Printed chart (standard model)
- Digital measuring kit (digital model)
- Carrying case
- Whisk broom
- Barrel brush
- Mohs kit
- (3) Single probe measuring plates
- (2) Single probe firing templates
- Probe withdrawal kit
- (3) Single probe measuring caps
- Triangular template
- Wrench
Accessories:
- Windsor Probes are available in sets of three. Each set includes three power loads, enough to run one test, or cases containing 25 units are also available. Probe sets are available in gold or silver for measuring concrete strengths.
- WP-700 Electronic Measuring Upgrade can be purchased later to upgrade a user Standard Test System.
