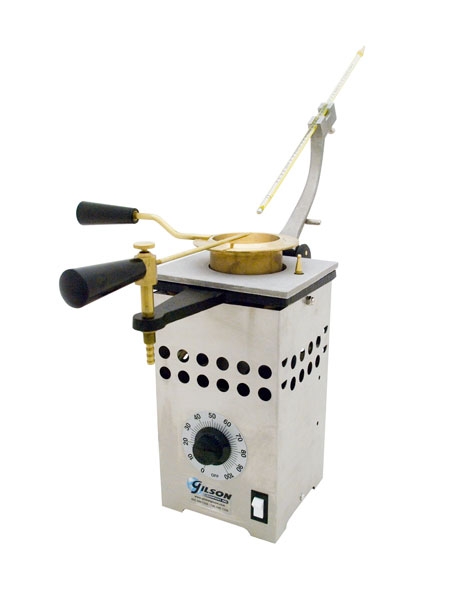

Cleveland Flash Tester

Cleveland Flash Point Tester is used in the Cleveland Open Cup method to measure flash and fire points for petroleum products igniting above 175°F (79°C). The variable control 1,250 Watt nickel-chromium heater assures accurate rate-of-rise temperature settings. The pivoting test-flame burner requires a separate gas supply. The thermometer positioning bracket is adjustable and can be raised for clearance to remove and install the cup. A rugged stainless steel housing with cooling vents encloses the heater and the open flash cup rests on an insulated platform. The MA-212C ASTM 11C Thermometer is required and ordered separately.

Features:

• Used to measure flash and fire points in the Cleveland Open Cup method
• Meets ASTM D92 and AASHTO T 48 requirements
• Variable 1,250 Watt electric heater accurately controls temperatures
• The insulated platform reduces heat loss

Includes:

• Cleveland Flash Point Tester (115V, 60Hz or 220V, 50/60Hz)
  • Electric Heater with rheostat
  • Thermometer positioning bracket
  • Pivoting test-flame burner
  • Flash cup

Accessories:

• ASTM 11C Mercury Thermometer, -6° to 400°C is required for use with PT-6A.
• Platinum RTD Min/Max Thermometer with NIST Calibration, -328°–932°F (-200°–500°C), is an alternative to a mercury thermometer.
