Compact Field Scales

Compact Field Scale

6,000g Capacity Compact Field Scale, 2g Readability

Model: CP-6

$291.5000

Price: $291.50

Qty:

15,000g Capacity Compact Field Scale 5.0g Readability

Model: CP-15

$304.5000

Price: $304.50

Qty:

35,000g Capacity Compact Field Scale, 10.0g Readability

Model: CP-35

$304.5000

Price: $304.50

Qty:

75,000g Capacity Compact Field Scale, 20.0g Readability

Model: CP-75

$304.5000

Price: $304.50

Qty:

150,000g Capacity Compact Field Scale, 50g Readability

Model: CP-150A

$317.0000

Price: $317.00

Qty:

200,000g Capacity Compact Field Scale, 50g Readability

Model: CP-200

$338.5000

Price: $338.50

Qty:

Description
Specifications
Questions?

Compact Field Scales offer portable and affordable solutions for weighing concrete, soil, and asphalt samples in remote locations.

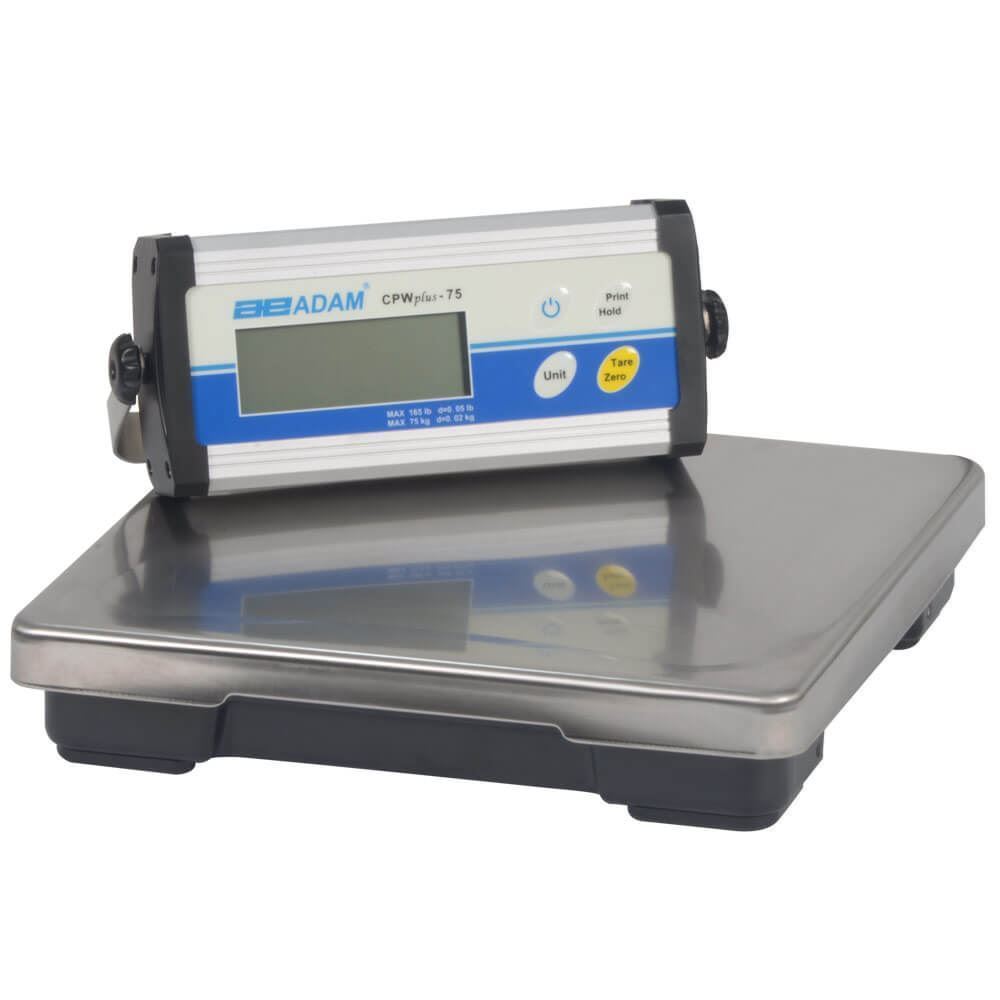

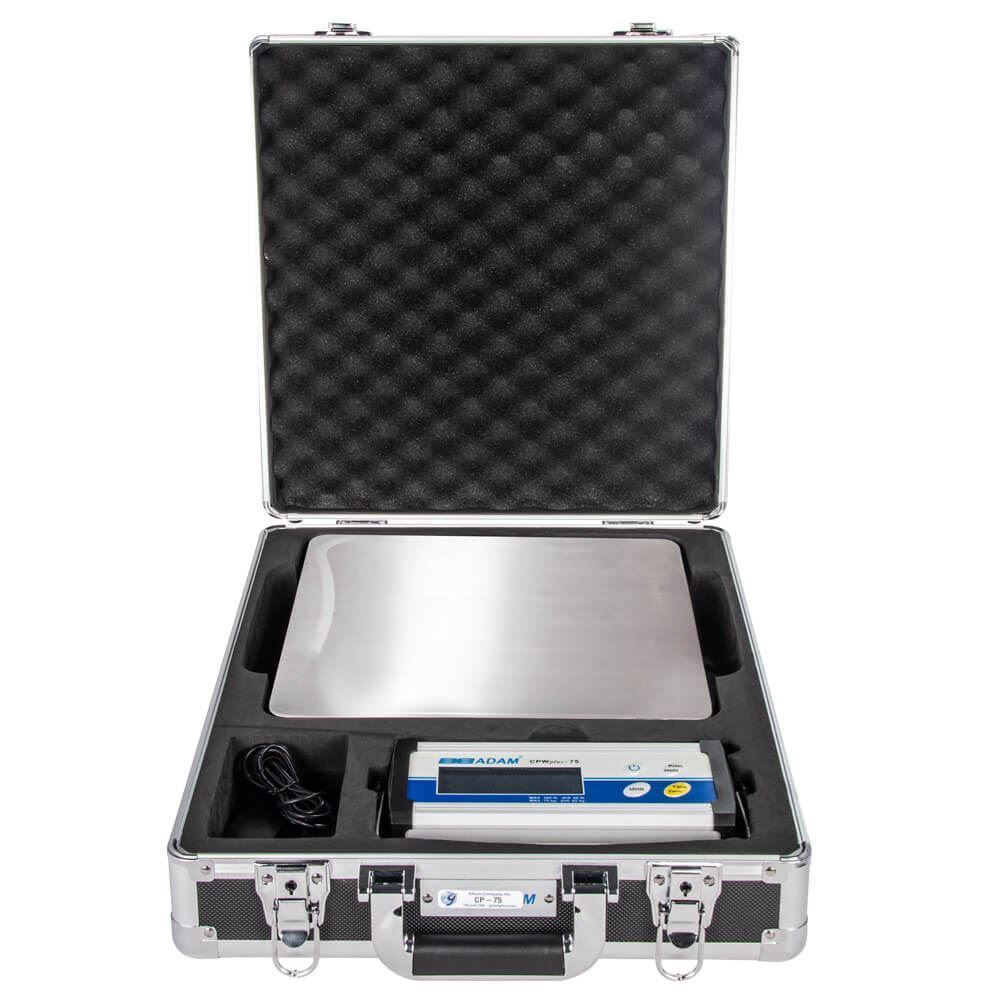

Gilson’s digital models have sturdy steel bases, large stainless steel platforms, and a wide range of capacities from 6,000 to 200,000g (13 to 440lb) for fast, accurate weight determinations. Sturdy, foam-fitted carrying cases make all models easily transportable.

A hold function allows the operator to lock the weight reading on the display for convenience. The large stainless steel platform paired with the sturdy steel base adds stability when weighing large samples and is easy to clean. Remote mountable indicators display information in large LCD characters. The user can adjust weighing units between lb, kg, oz, or lb: oz to suit unique application needs. Base dimensions are 11.8x11.8x2in (300x300x50mm).

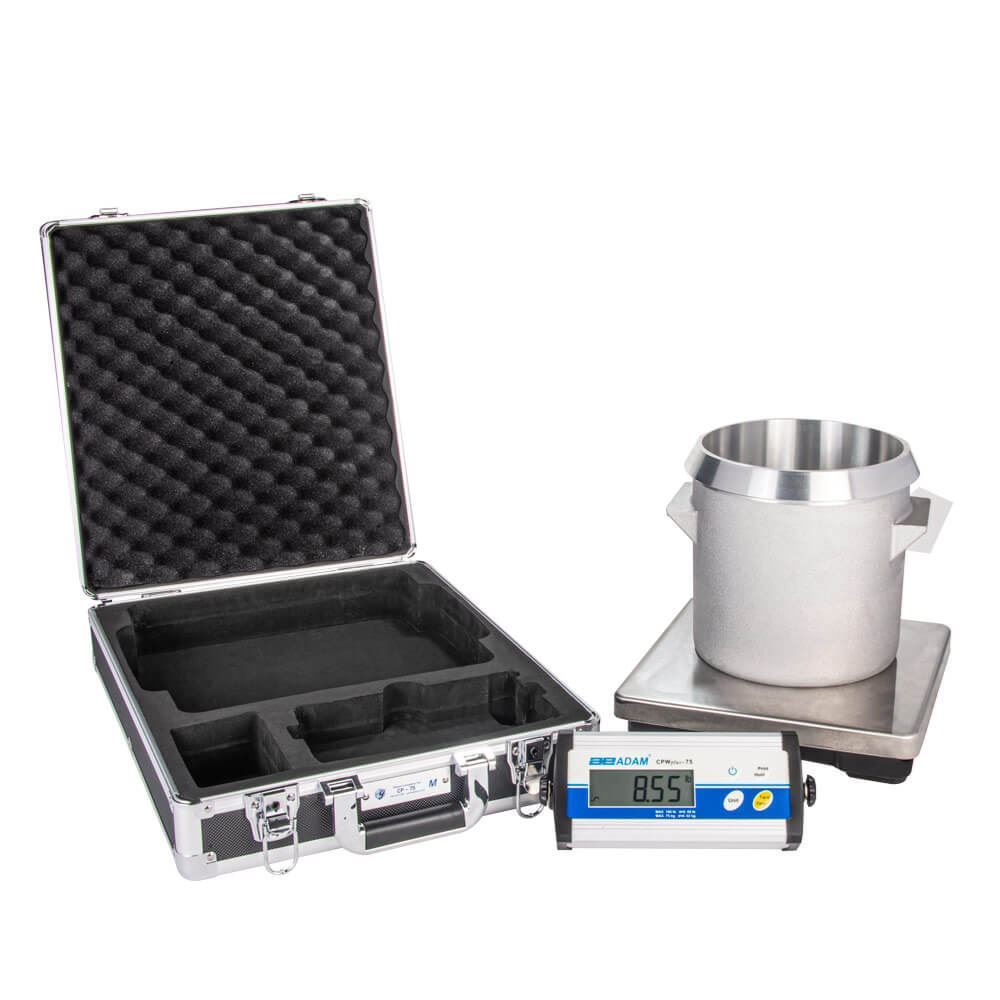

All models meet ASTM C29, C138, and AASHTO T 19, T 121 concrete specifications when paired with Cast Aluminum unit weight measures or Air Meter bases, and the CP-75 is ideal for the most commonly used 0.25ft³ (7.08L) unit weight containers. They also feature a full capacity tare range, include a three-year extended warranty, and operate on six AA batteries or the included AC adapter.

Features:

Portable, affordable solution for field weights of soil, concrete, and asphalt
kg, lb, oz, lb: oz selectable weighing units
Large, easy-to-read LCD display
Compliant with ASTM C29, C138, and AASHTO T 19 and T 121 for field unit weights and yield tests
Hold function allows continuous display of weight readings

Included Items:

Gilson Compact Field Scale
AC Adapter
RS-232 interface

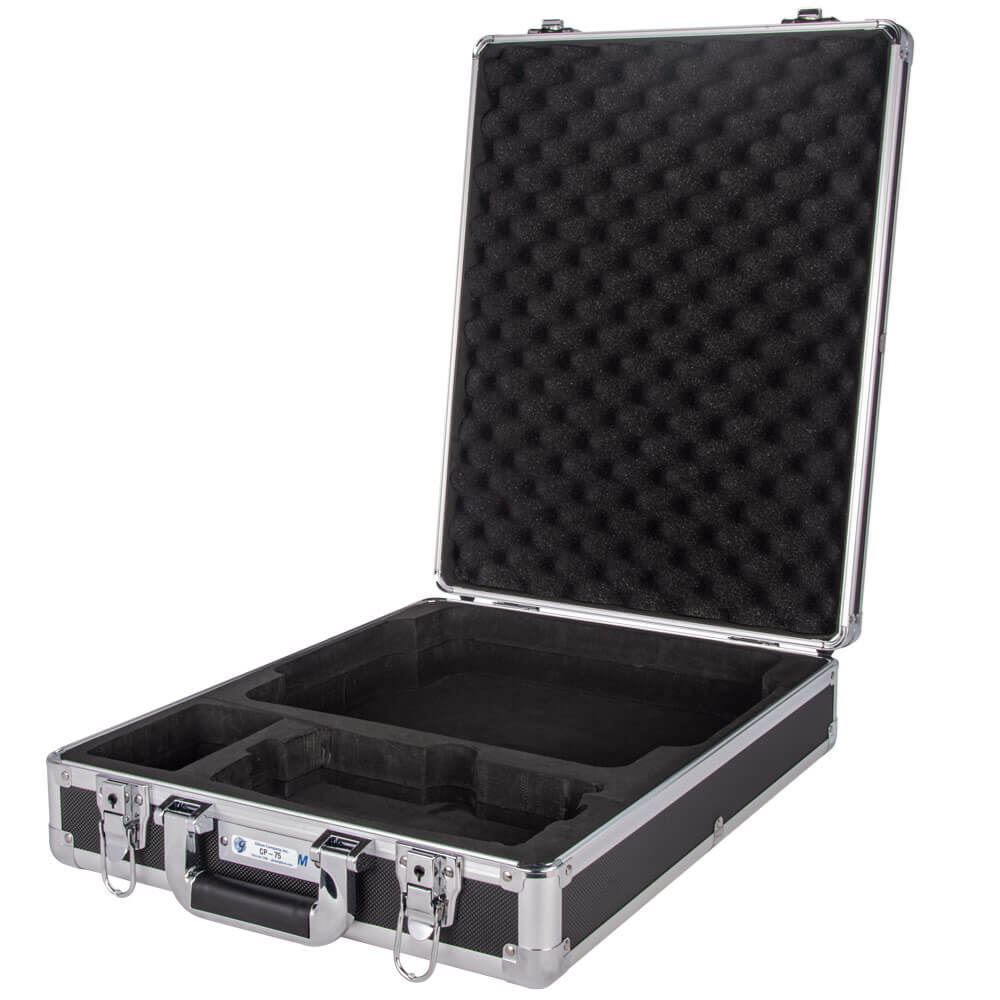

Aluminum carrying case with fitted foam interior
Wall Mount Bracket
Three-year warranty

Accessories

Stainless Steel Flat Bottom Weighing Pan is seamless, durable, and makes it easy to handle and weigh materials. The standard pan is compatible with scales 300g capacity and above, and the large pan is compatible with scales 400g capacity and above.

Related blogs:

Capacity	CP-6: 6000g (13lb) CP-15: 15,000g (33lb) CP-35: 35,000g (75lb) CP-75: 75,000g (165lb) CP-150A: 150,000g (330lb) CP-200: 200,000g (440lb)
Readability	CP-6: 2.0g (0.005lb) CP-15: 5.0g (0.01lb) CP-35: 10.0g (0.02lb) CP-75: 20.0g (0.05lb) CP-150A and CP-200: 50.0g (0.1lb)
Repeatability	CP-6: 2.0g CP-15: 5.0g CP-35: 10.0g CP-75: 20.0g CP-150A and CP-200: 50.0g
Selectable Weighing Units	kg, lb, oz, and lb:oz
Weigh-Below Option	No
Display	LCD
Power Requirements	AC Adapter
Communication Port(s)	RS-232 Interface
Brand	Adam
Platform Size	11.8 x 11.8in (300 x 300mm), WxD
Outside Dimensions	Including Case: 18.63 x 14.25 x 6in (473.08 x 361.95 x 152.4mm), WxDxH
Product Dimensions	11.8 x 11.8 x 2in (300 x 300 x 50mm), WxDxH
Estimated Shipping Weight	CP-6: 11.0lb (4.99kg) CP-15: 21.0lb (9.53kg) CP-35: 21.0lb (9.53kg) CP-75: 21.0lb (9.53kg) CP-150A: 21.0lb (9.53kg) CP-200: 21.0lb (9.53kg)
