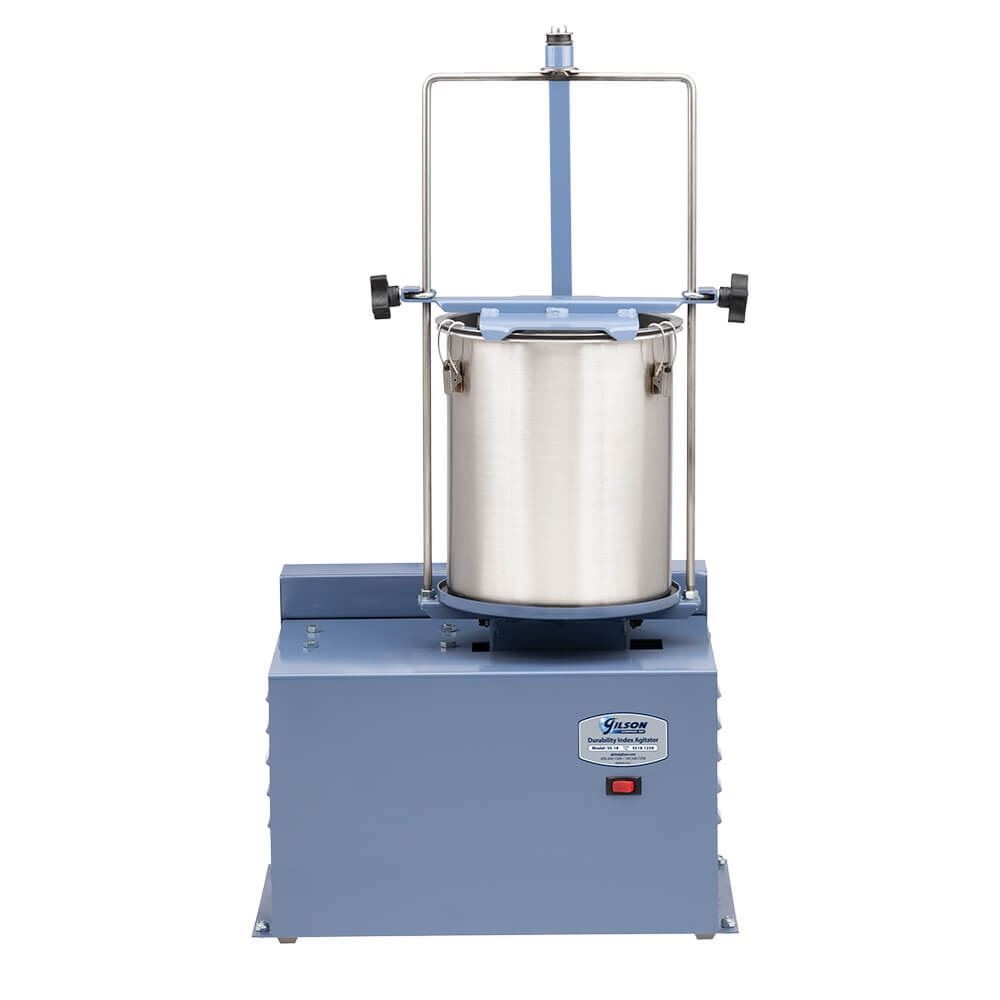

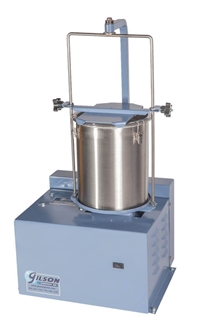

Durability Index Agitator

Durability Index measures the relative resistance of aggregates to producing clay-like fines when mechanically agitated in a special washing vessel. The fines resulting from the agitation of material is evaluated further using an SEO-100 Sand Equivalent Test Set and sand equivalent shaker, both listed separately.

The versatile Gilson Durability Index Agitator runs at 285cpm, and may also be used as a sieve shaker for up to six full-height 8in or 200mm diameter sieves and pan. Holes are provided for securing flanges to the floor or a benchtop.

An 8x9.5in (203x241mm),Dia.xH Stainless Steel Washing Vessel (sold separately) is required to perform the Durability Index test.

SS-18F runs on 220V, 50Hz and is shipped without an electrical plug.

Features:

• Optimal for measuring relative resistance of aggregates to abrasion during agitation
• Ability to use as a sieve shaker for up to six full-height 8in or 200mm diameter sieves and pan

Included Items:

• Durability Index Agitator

Accessories:

• SSA-22 Washing Vessel is required to perform the test
• TSA-169R Digital Lab Timer can be used to precisely control test times
• Sand Equivalent Test Sets are used to evaluate the resulting fines material
