Marshall Stability Load Frame

Product Files
Marshall Stability Load Frame, 10,000lbf (120V, 60Hz)

Marshall Stability Load Frame, 10,000lbf (120V, 60Hz)

Model: MS-86
$3400.0000
Price: $3,400.00
Marshall Stability Load Frame, 10,000lbf (230V, 50Hz)

Marshall Stability Load Frame, 10,000lbf (230V, 50Hz)

Model: MS-86F
$3400.0000
Price: $3,400.00

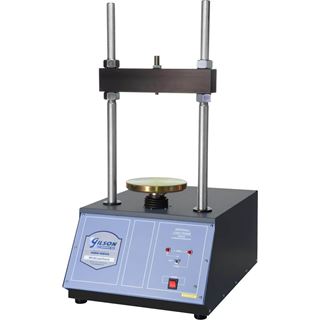

Marshall Stability Load Frame, 10,000lbf (220V, 60Hz)

Marshall Stability Load Frame, 10,000lbf (220V, 60Hz)

Model: MS-86S
$3400.0000
Price: $3,400.00
Marshall Stability Load Frame, 20,000lbf (200-240V, 50/60Hz)

Marshall Stability Load Frame, 20,000lbf (200-240V, 50/60Hz)

Model: MS-87
$6300.0000
Price: $6,300.00

Marshall Stability Load Frames from Gilson perform more than Marshall stability and flow tests for asphalt mix designs. Many other asphalt test methods take advantage of the strain rate range and load capacity of these load frames. These tests are typically performed at a strain rate of 2.0in (50.8mm) per minute.

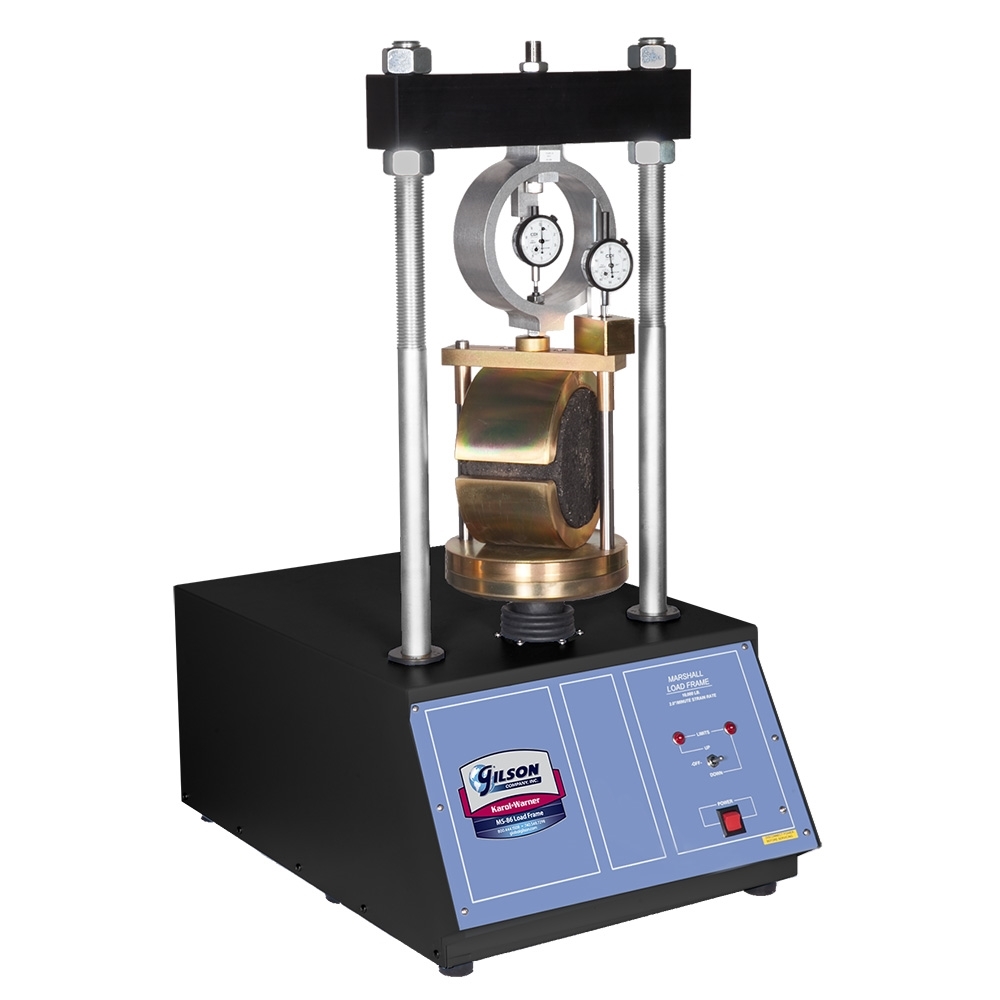

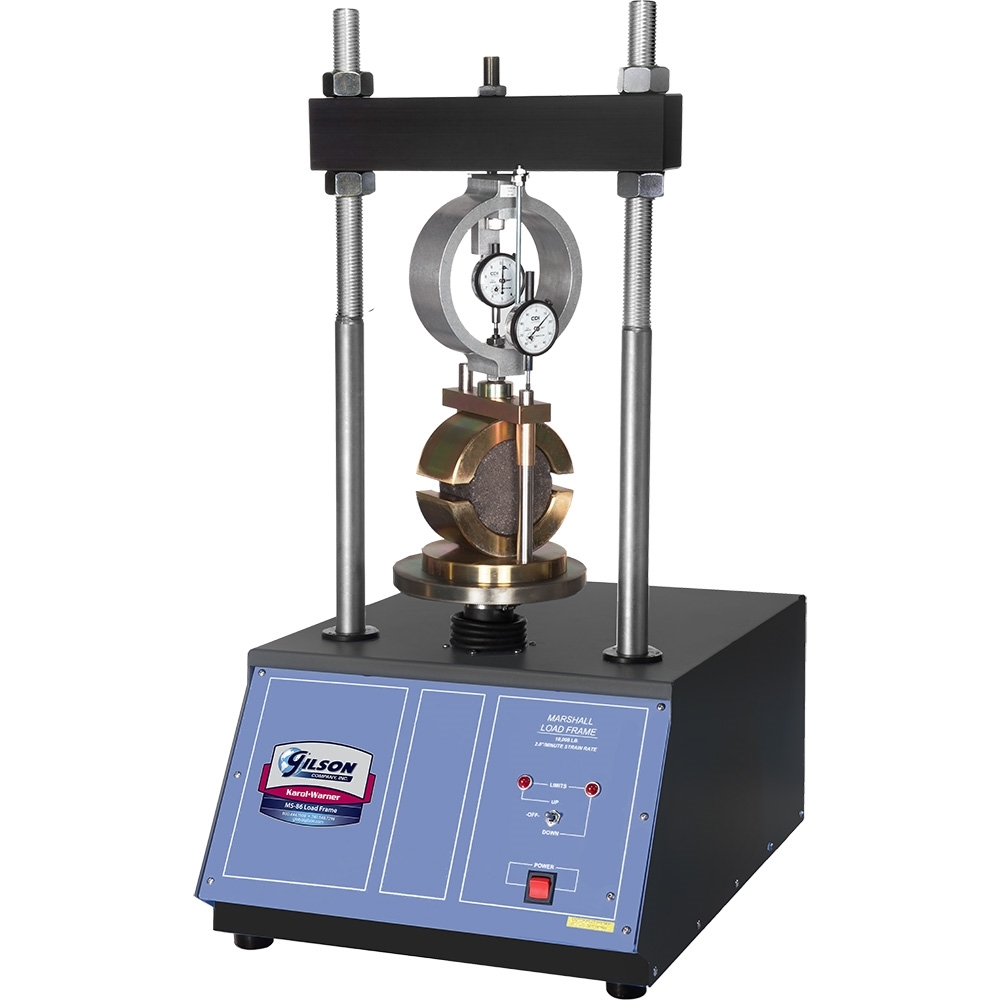

Marshall stability and flow is a popular and established test to measure the plastic flow of asphalt paving mixture. A range of tests can be performed using the Marshall Stability Load Frames, such as:

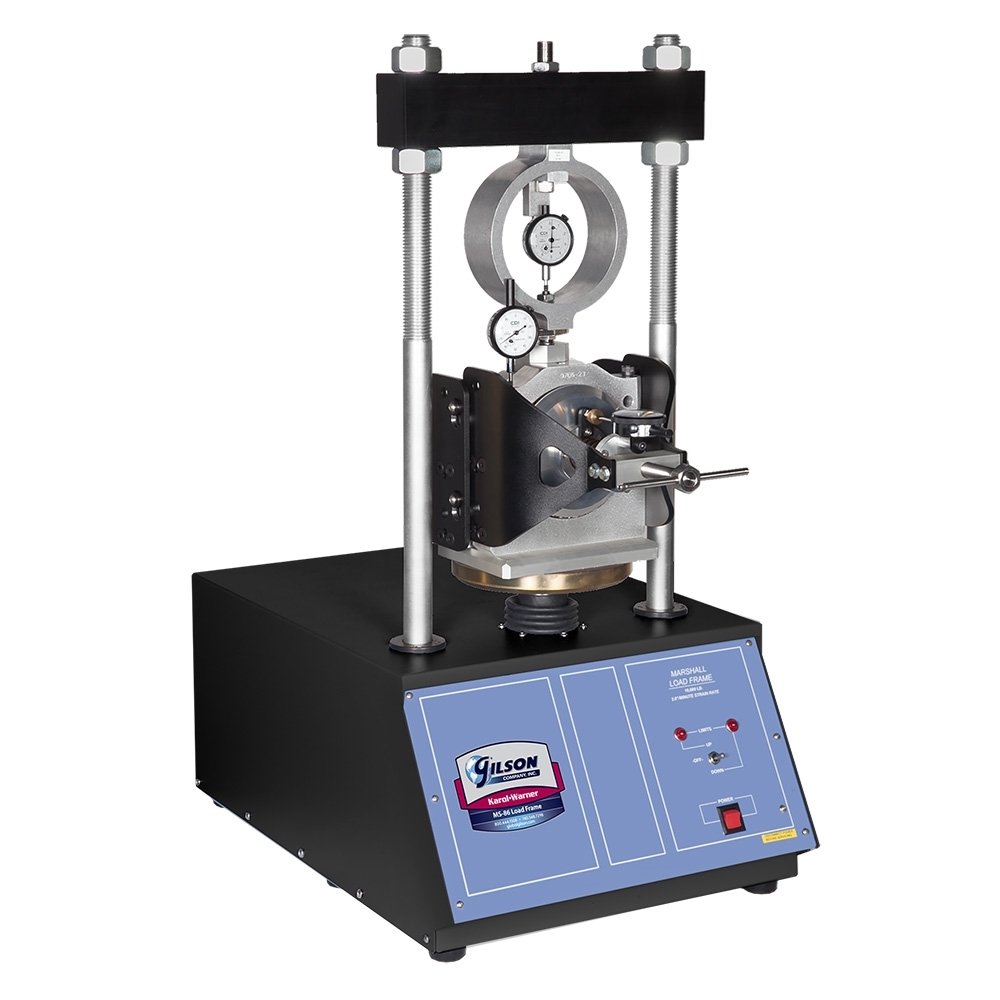

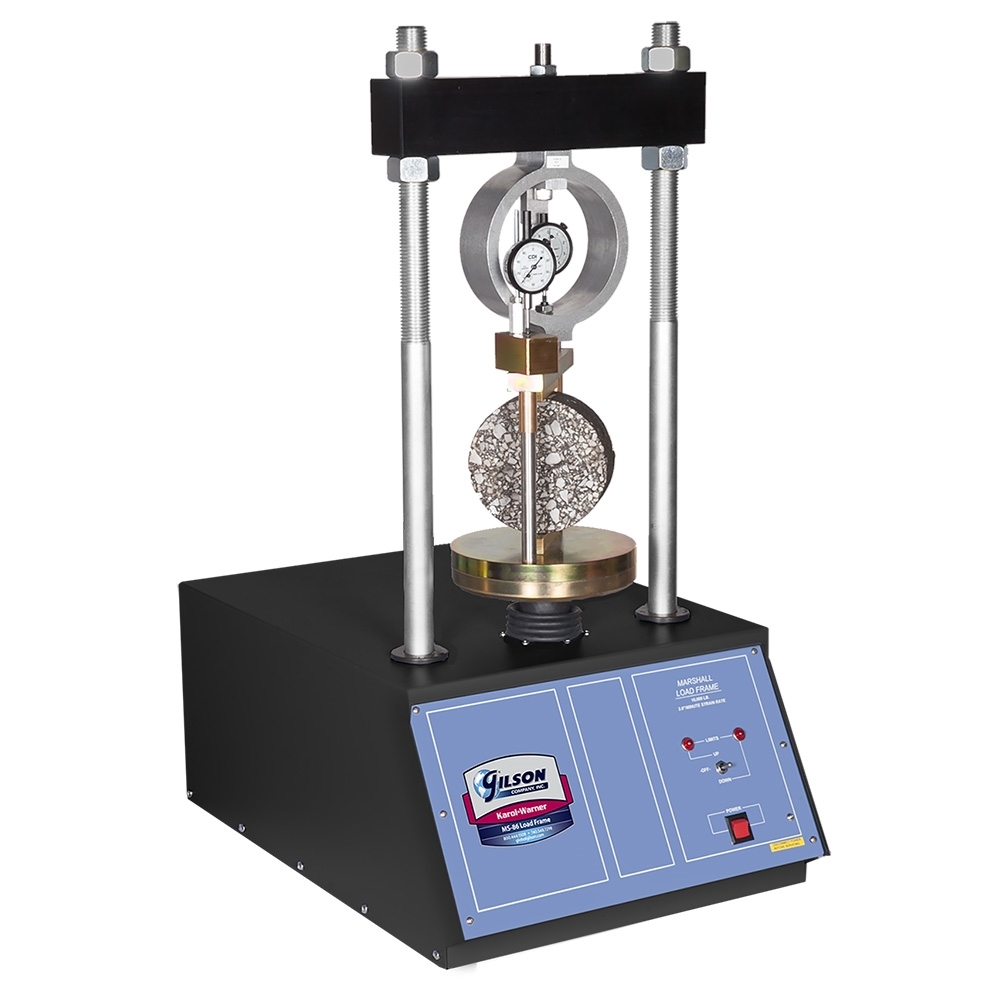

  • The indirect tensile strength (IDT) or Lottman test to evaluate moisture susceptibility and allow the calculation of tensile strength ratios (TSR)

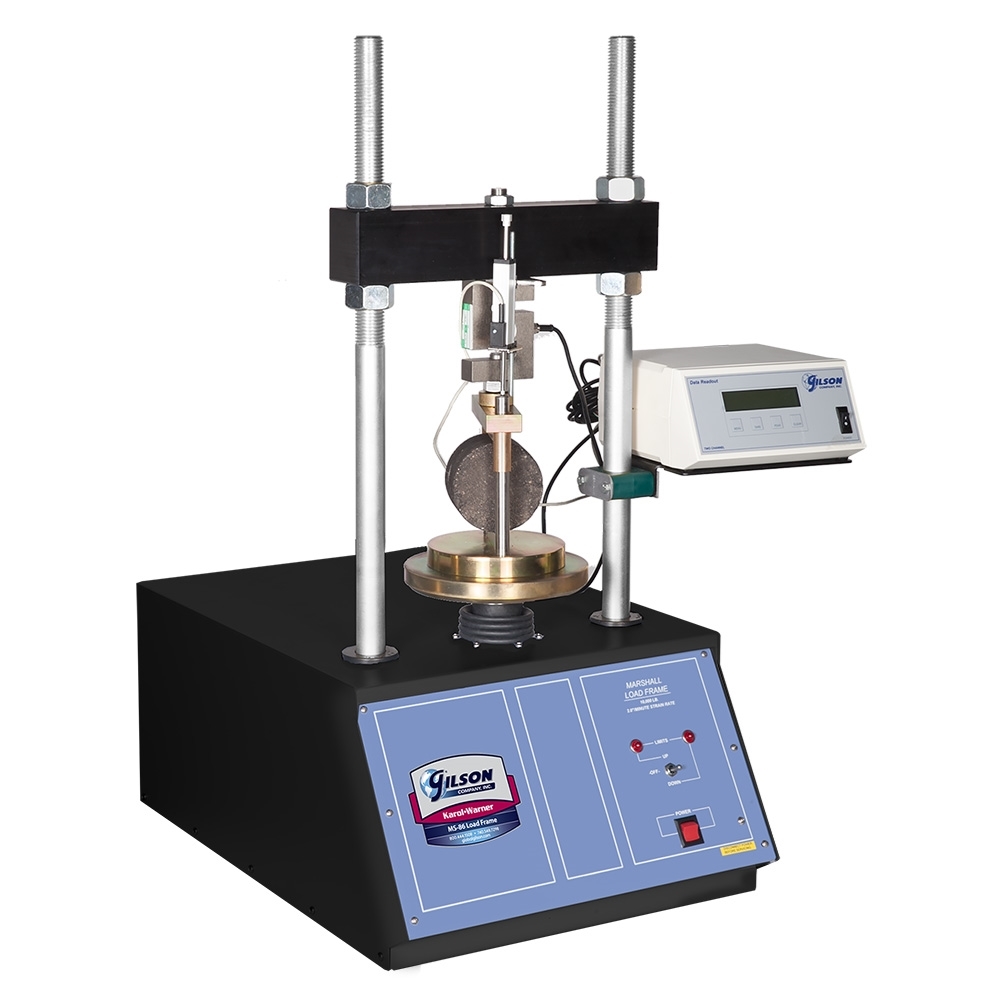

  • Interlayer shear strength (ISS) test to measure the shear strength of tack coats between asphalt layers

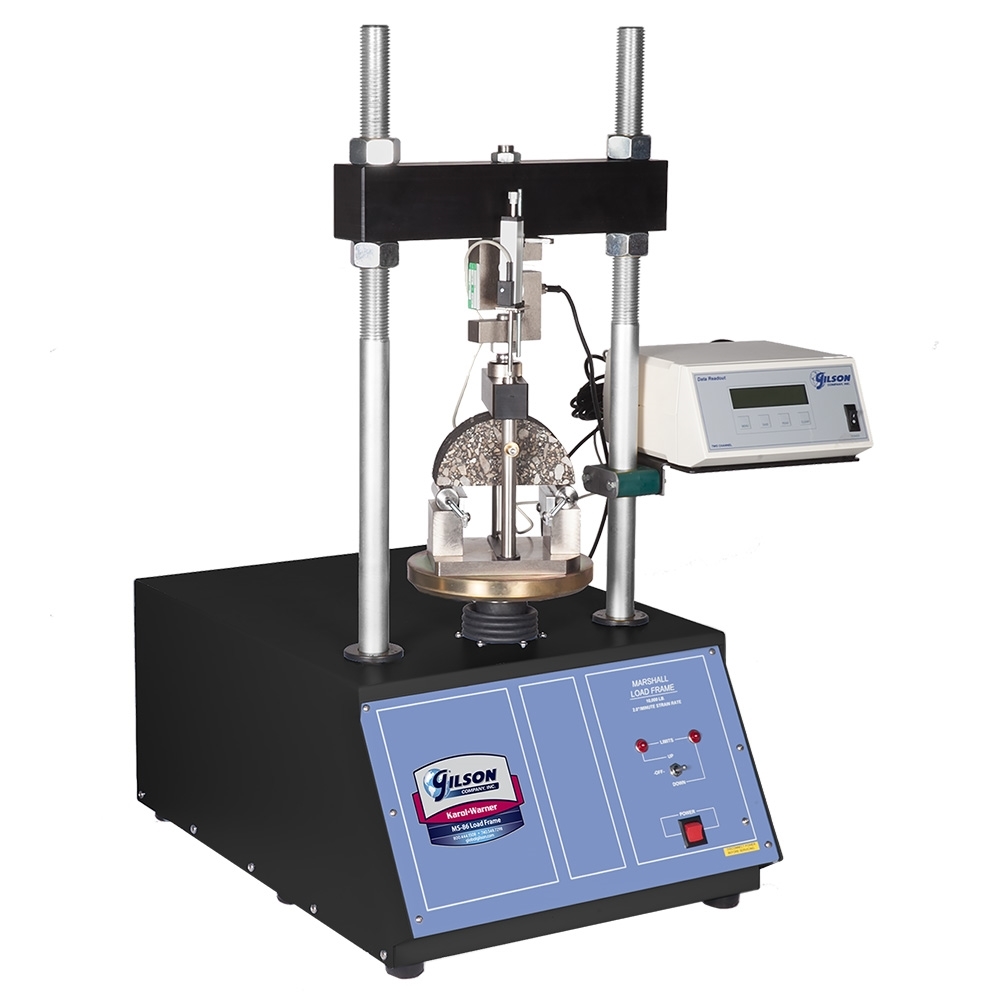

  • Semicircular bend (SCB) test to determine resistance to cracking and fracture energy of asphalt mixtures
  • IDEAL-RT test to determine resistance to rutting, or rutting tolerance

All asphalt load frames are powered by heavy-duty direct drive motors with overlimit switches to prevent movement beyond the 3in (76.2mm) range. Large 8in (203.2mm) diameter test platens and threaded adjustable crossheads easily accommodate a variety of test fixtures. Sturdy, 16ga powder-coated steel cabinets can stand up to rugged use in lab environments.

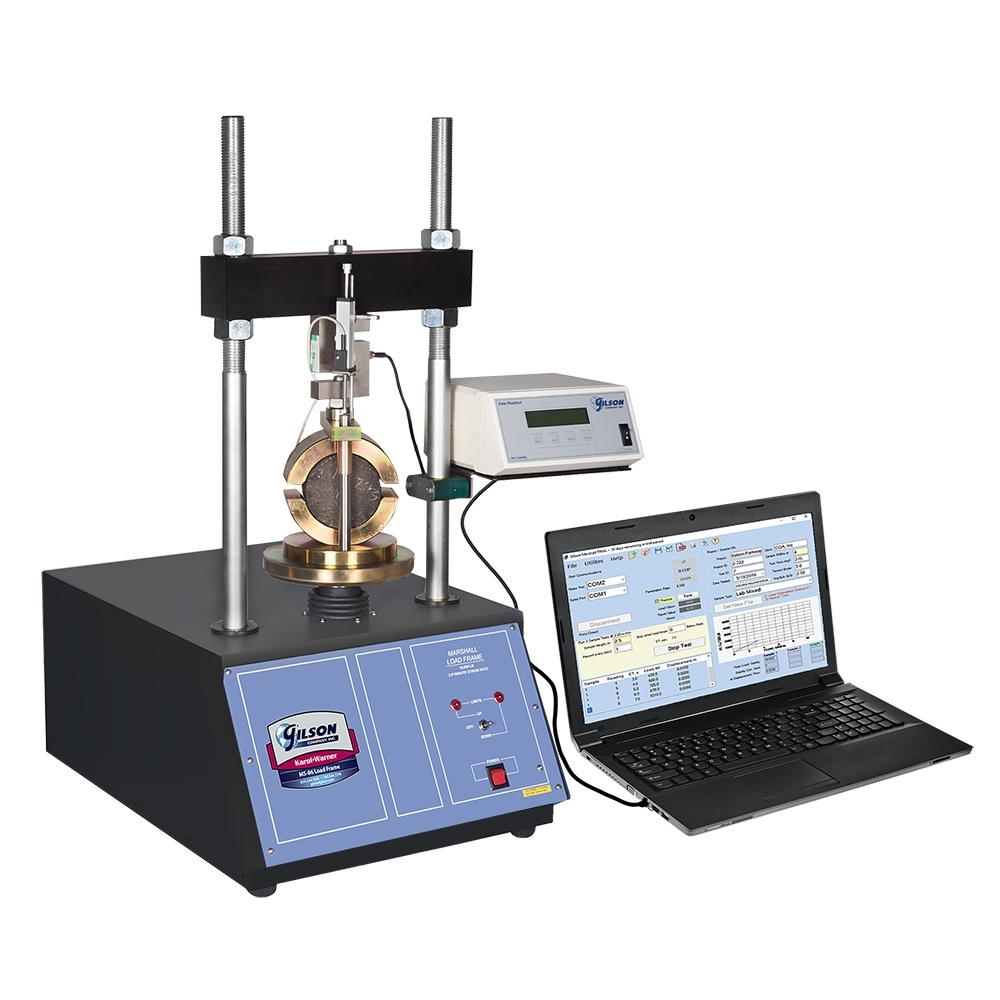

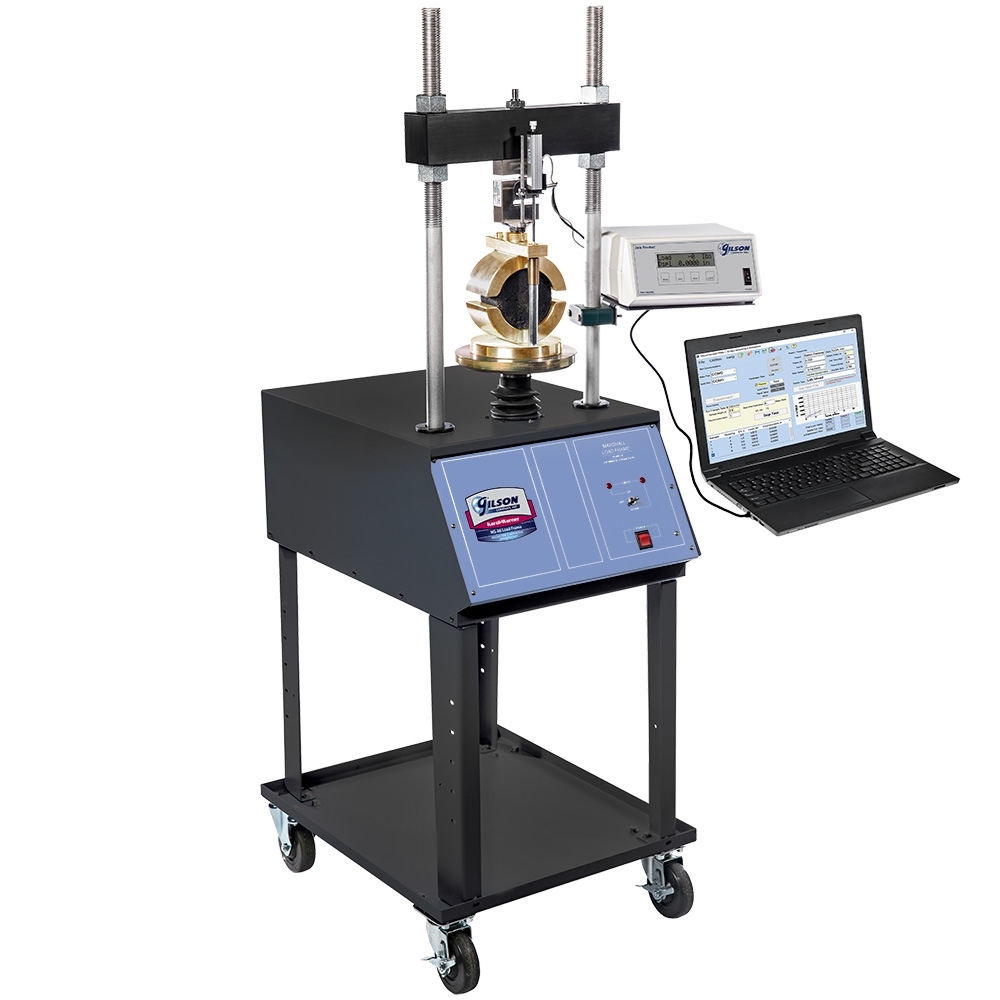

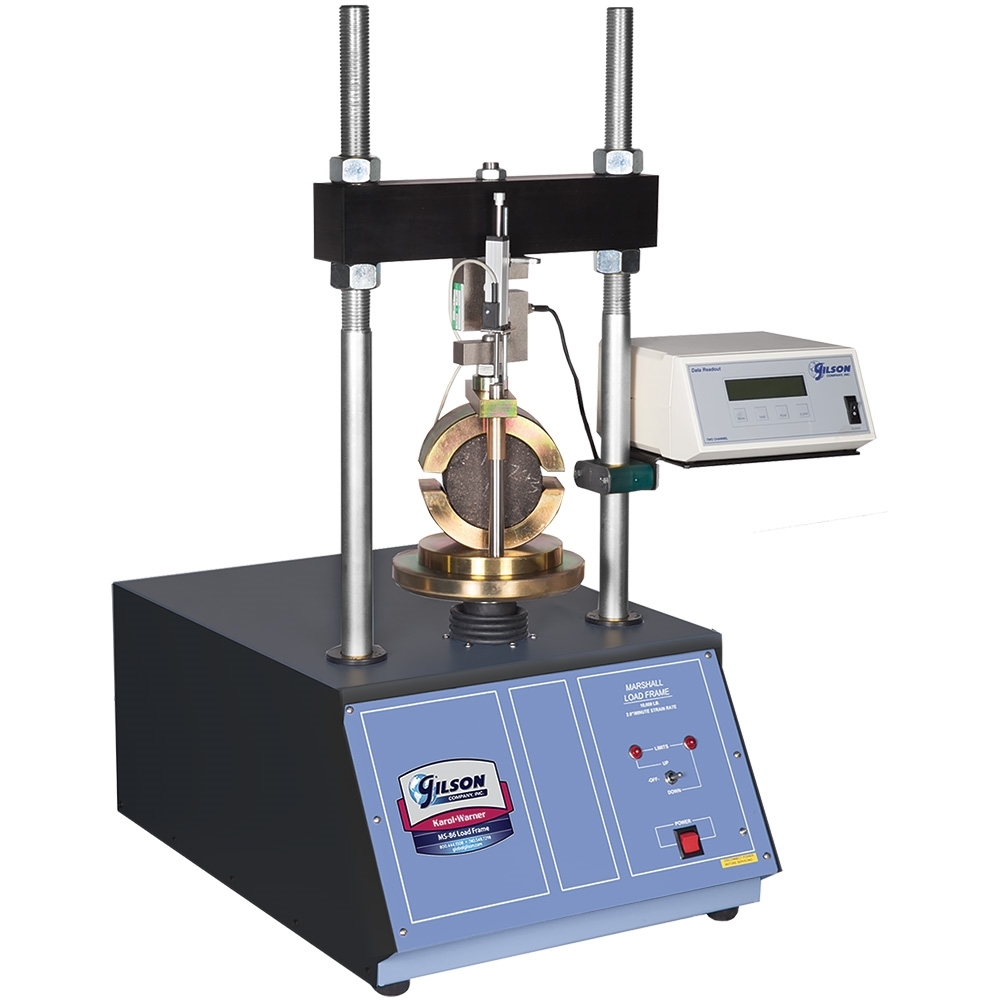

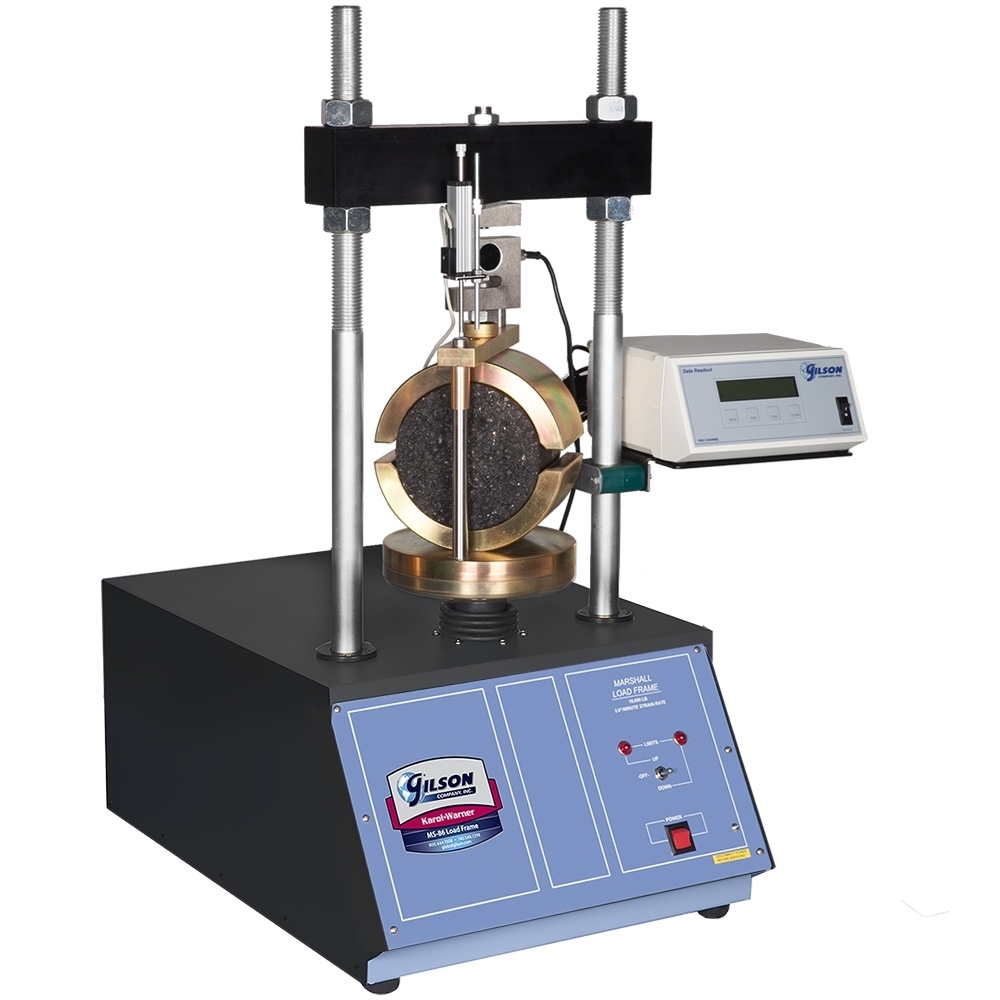

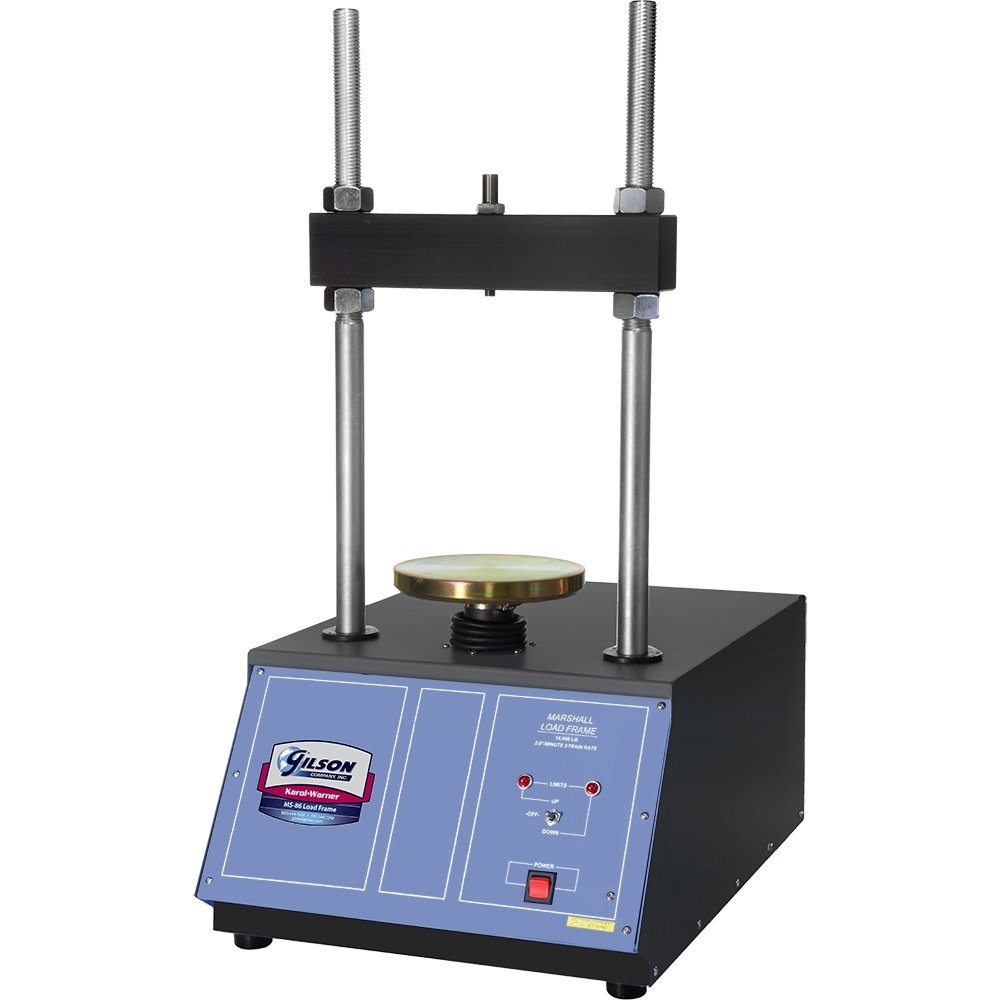

MS-86 Load Frame has a fixed strain rate of 2.0in/min (50.8mm/min) and 10,000lbf (44.4kN) capacity. This model is powered by a 1hp AC motor and controller to precisely control strain rates and has a daylight opening of 11.9x19.5in (302.3x495.3mm) to accommodate a wide range of asphalt text fixtures. This unit operates at 120V, 60Hz (MS-86), or 230V, 50Hz (MS-86F), or 220V, 60Hz (MS-86S).

MS-87 Load Frame has a capacity of 20,000lbf (88.9kN) and operates at 200-240V, 50/60Hz, but is otherwise identical to MS-86.

Features:

  • Consistent loading rate maintained at ±1% by the 1hp DC motor and controller
  • Easily changeable crosshead with adjusting nuts
  • Flexible boots protect precision loading screws from debris

Included Items:

  • Marshall Stability Load Frame (10,000 or 20,000lbf capacity)
  • 8in (203mm) diameter lower platen

Accessories:

Related blogs:

Load Capacity

MS-86 Models: 10,000lbf (44.5kN)

MS-87 Model: 20,000lbf (89kN)

Motor 1hp DC Motor
Frame Opening Dimensions 11.9x19.5in (302.3x495.3mm)
Electrical

MS-86: 120V, 60Hz, 10 Amps, 1,200 Watts

MS-86F: 230V, 50Hz, 6 Amps, 1,380 Watts

MS-87: 200-240V, 50/60Hz, 6.5 Amps, 1,300 Watts

Product Dimensions 18x29x54.5in (457.2x736.6x1,384.3mm), WxDxH
Estimated Shipping Weight 250.0lb (113.40kg)

Enter your name, email, and questions below and we will reply during business hours (8am - 5pm EST, Monday through Friday).

Load Capacity

MS-86 Models: 10,000lbf (44.5kN)

MS-87 Model: 20,000lbf (89kN)

Motor 1hp DC Motor
Frame Opening Dimensions 11.9x19.5in (302.3x495.3mm)
Electrical

MS-86: 120V, 60Hz, 10 Amps, 1,200 Watts

MS-86F: 230V, 50Hz, 6 Amps, 1,380 Watts

MS-87: 200-240V, 50/60Hz, 6.5 Amps, 1,300 Watts

Product Dimensions 18x29x54.5in (457.2x736.6x1,384.3mm), WxDxH
Estimated Shipping Weight 250.0lb (113.40kg)
